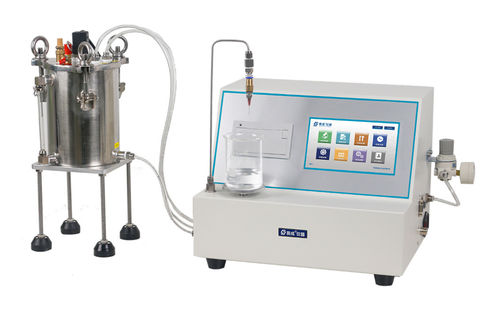

Flow tester LLY-01

for medical devicesmedicalcompact

Product Introduction
The LLY-01 medical flow rate and pressure tester is engineered for bench and inline testing of single-use injection devices. It evaluates flow rate, pressure resistance and sealing integrity of disposable syringe needles, intravenous needles, infusion needles, IV sets, anesthesia puncture kits, catheters and similar devices.

Product Features

• 7-inch color touchscreen with graphical user interface (GUI) for test setup and results visualization
• One-touch operation with automatic end-of-test detection to simplify production and QC workflows
• High-precision pressure sensor system ensuring repeatable pressure and flow measurements
• Integrated fluid reservoir to stabilize hydraulic conditions and reduce measurement variability
• Automatic data storage with non-volatile memory for traceability after power loss
• Safety protections including emergency stop and overload protection
• Built-in micro-printer for immediate hardcopy of test reports
• Standard USB interface for data export and laboratory connectivity
• Multi-level user permissions aligned with GMP requirements
• ISP online control and upgrade capability for remote modification of test procedures

Test Principle
The instrument uses positive pressure testing: it applies a controlled water pressure to the sample and maintains that pressure for a defined duration to assess flow rate, pressure resistance and sealing performance.

Test Standards

• ISO 7864 – Sterile hypodermic needles — Requirements and test methods
• GB 15811-2025 – Single-use sterile hypodermic needles (China)
• GB 8368-2018 – Infusion sets for single use — Gravity feed (China)
• GB/T 15812.1-2005 – Catheters other than intravascular catheters — Part 1: Test methods for common properties (China)

Test Applications
Applicable to disposable syringe needles, intravenous needles, infusion needles, IV sets, anesthesia puncture kits, catheters and other injection devices used in clinical and manufacturing QA environments.

Parameters / Measured Items
Flow rate: volume passing through the device per unit time (mL/min, mL/h or drops per minute).
Pressure resistance: ability to withstand internal fluid pressure without rupture or leakage.
Sealing reliability / Leakage: absence of fluid escape under specified pressure and flow conditions.

Technical specifications

• Test range: 0 ~ 400 kPa
• Pressure accuracy: ±0.5 kPa
• Weighing range: 0 ~ 1200 g
• Weighing accuracy: ±0.02%
• Test time: 1 ~ 9999 s (adjustable)
• Air supply: 0.4 ~ 0.6 MPa (external)
• Port size: Φ6 mm PU tubing
• Power supply: AC 100–240V 50/60Hz (configurable to local requirements)
• Instrument dimensions: 430 mm (W) × 300 mm (D) × 450 mm (H)
• Net weight: 14 kg
• Standard configuration: instrument, micro-printer, test fixture
