Qualification tester Luer-C2

for medical devicesmultifunctionmedical

Product Introduction

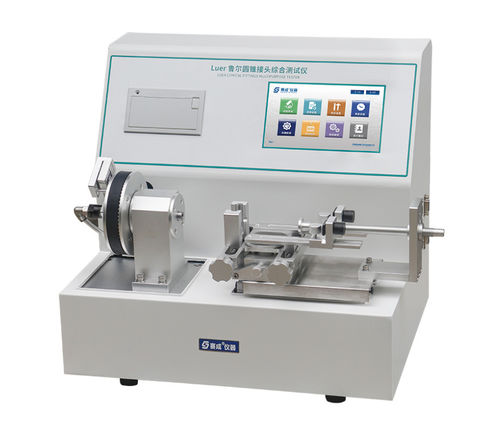

The Luer Taper Conical Fittings Multipurpose Tester Luer-C2 is designed for laboratory and production-line qualification of locking and non-locking Luer connectors used in syringes, needles, catheters and related medical devices. It performs gauging, liquid and air leakage, separation force, unscrewing torque, assembly ease, override resistance and stress-cracking tests according to applicable standards.

Product Features

• 7-inch color touchscreen with graphical user interface (GUI) for test setup and results review.
• Built-in standard test routines and selectable fixtures for a wide range of Luer variants.
• Automatic pass/fail evaluation and real-time display of axial force, torque, hold time, internal water pressure and separation force during assembly tests.
• Slip-ring coupling between torque sensor and rotating element to ensure accurate torque measurement.
• High-precision force and torque sensors with overload protection for repeatable measurements.
• High-precision motion control for smooth and reproducible engagement and rotation.
• Automatic result storage with non-volatile memory; standard USB interface for data export.
• Integrated micro-printer for automatic hardcopy test reports.
• Multi-level user permissions and audit features aligned with GMP requirements.
• ISP online control and firmware upgrade capability for remote modification and extension of test functions.
• Multiple safety protections including emergency stop and overload detection.

Test Standards
Complies with relevant national and international standards: ISO 80369-3, ISO 80369-6, ISO 80369-7, ISO 80369-20, GB/T 1962.1, GB/T 1962.2, YY/T 0916.6, YY/T 0916.7, YY/T 0916.20.

Test Items (Parameter — Description)

• Liquid leakage — Under standard test conditions, no leakage forming falling droplets is permitted.
• Gas leakage — Under standard test conditions, no bubble formation is allowed.
• Separation force — Under standard test conditions, the test connector and the standard connector must not separate.
• Unscrewing torque — Under standard test conditions, connectors must not loosen or separate under the specified torque.
• Ease of assembly — Rigid connectors: no appreciable resistance before full seating. Semi-rigid connectors: secure connection achievable with axial force ≤20 N and torque ≤0.08 N·m.
• Overload resistance — Standard connector must not cross-thread or damage threads/lugs of the test connector under test conditions.
• Stress cracking — Connector must not exhibit stress cracking under test conditions.
• Resistance to stripping — When applying ≥0.15 N·m for 5 s, connector threads must not strip.
• Pressure decay leakage — Connect per standard, apply specified pressure and measure pressure change to determine leakage rate.
• Negative pressure air leakage — Connect per standard, apply vacuum pressure and measure negative pressure change to determine leakage rate.

Test Applications

• IV sets, blood transfusion sets, IV needles
• Catheters, anesthesia filters
• Locked Luer connectors and non-locked Luer connectors

Configurations

• Standard: instrument, micro-printer, standard fittings, gas and liquid storage tanks

Please Note
Technical specifications are subject to change without notice. Manufacturer reserves final interpretation and right of revision.

Technical specifications

• Model: Luer-C2
• Axial Force: 0 ~ 100 N
• Force Accuracy: 0.3% FS
• Test Pressure: -90 kPa ~ 400 kPa
• Pressure Accuracy: 0.25% FS
• Torque: 0.01 ~ 0.50 N·m
• Torque Accuracy: 0.3% FS
• Separation Force: 20 ~ 50 N (Accuracy 0.5% FS)
• Leak Pressure Resolution: 0.00001 Pa·m³/s
• Instrument Dimension: 1300 mm (W) x 440 mm (D) x 410 mm (H)
• Power Supply: AC 100-240V 50/60Hz (configurable to local requirements)
• Net Weight: 46 kg
