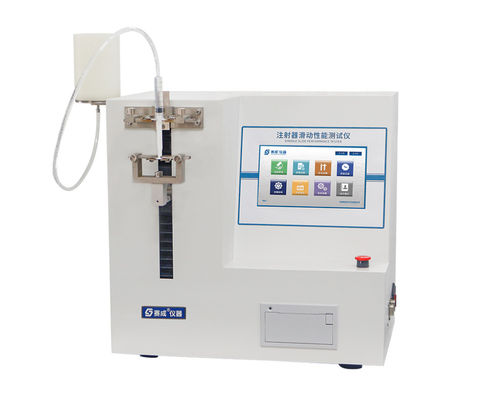

Slip resistance testing machine HDX-03

automaticfor syringesfor medical applications

Product Overview
The HDX-03 Syringe Sliding Resistance Tester measures plunger glide force for medical syringes, prefilled syringes and insulin pens. It provides repeatable force measurement and traceable data output for laboratory and quality control use.

Key Features

• 7-inch color touchscreen with graphical user interface (GUI)
• High-precision force sensors for accurate and repeatable measurements
• Real‑time force curve display with initial, average and maximum values
• Precise motion control for adjustable test speed and smooth operation
• Automatic data storage with retention after power-off
• Safety features: emergency stop and overload protection
• Integrated micro-printer for immediate result printing
• Standard USB interface for data export
• Multi-level user permissions compliant with GMP requirements
• ISP online control and firmware upgrade capability

Test Principle
The instrument secures the syringe and simulates plunger movement under controlled speed and load to evaluate sliding performance of the plunger within the barrel, reproducing real-world conditions for QC testing.

Measured Parameters (Parameter — Description)

• Break‑Loose Force — Initial peak force required to initiate plunger movement.
• Glide Force — Average force to maintain plunger travel during injection.
• Maximum Force — Highest recorded force during plunger travel (excluding break‑loose peak).

Test Standards

• ISO 7886 — Sterile hypodermic syringes for single use — General requirements
• ISO 11040-4 — Prefilled syringes (Part 4: sliding force for glass barrels)
• GB 15810-2019 — Sterile syringes for single use

Test Applications
Suitable for testing disposable sterile syringes, prefilled syringe systems and infusion/insulin devices during incoming inspection, R&D and production QC.

Configurations

• Standard: Instrument, Micro-printer

Notes
Specifications are subject to change. Manufacturer retains final interpretation and revision rights.

Technical Specifications

• Test Range: 0 ~ 50 N (10 N, 20 N optional)
• Resolution: 0.001 N
• Accuracy: ±0.5% FS
• Test Speed: 0 ~ 500 mm/min (adjustable)
• Nominal Capacity: 1 ~ 100 mL
• Power Supply: AC 100-240V 50/60Hz (configurable to local requirements)
• Instrument Dimension: 470 mm (W) x 300 mm (D) x 500 mm (H)
• Net Weight: 20 kg
