Puncture tester CCL-02

needle penetrationfor medical devicesmedical

Product Introduction

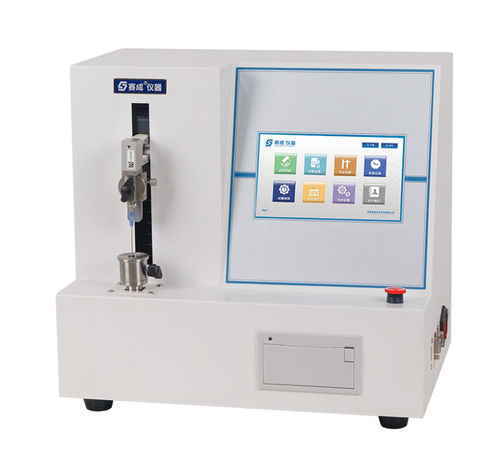

The CCL-02 Medical Needle Puncture Tester measures puncture (penetration) forces of medical needles, injection needles and needle tubes by simulating penetration into polyurethane artificial skin. The system delivers repeatable force data for assessing needle sharpness and penetration resistance.

Product Features

• 7-inch color touchscreen with graphical user interface (GUI)
• Automatic recording of penetration force and resistance test results
• Automatic test termination configurable by displacement, force, or time
• High-precision sensors for accurate and repeatable force measurement
• High-precision motion control system for smooth operation
• Automatic data storage with memory retention after power-off
• Safety features including emergency stop and overload protection
• Integrated micro-printer for automatic result printing
• Standard USB interface for convenient data transfer
• Multi-level user permissions compliant with GMP requirements
• ISP online control and upgrade capability for remote function updates

Test Principle
The device clamps the needle and a polyurethane film (artificial skin) and drives the needle through the film at a controlled speed while measuring puncture force. Results are recorded automatically to evaluate needle penetration performance.

Parameter Descriptions

• Peak Puncture Force: Maximum load recorded as the needle tip penetrates the test medium, correlating with needle sharpness
• Mean Puncture Force: Arithmetic average of forces applied during the entire penetration process
• Breakthrough Force: Critical force at the moment the needle tip passes through the material surface
• Sliding Resistance Force: Continuous resistance encountered as the needle shaft moves through the medium
• Pull Out Force: Maximum force required to extract the needle from the test medium

Test Applications
Basic applications include disposable sterile injection needles, prefilled syringe needles and infusion needles.

Technical Specifications

• Test Range: 0 ~ 20 N (50 N Optional)
• Resolution: 0.001 N
• Force Accuracy: ±0.5% FS
• Loading Speed: 0 ~ 500 mm/min (Adjustable)
• Speed Accuracy: ±0.5% FS
• Needle Tubing Size: 0.18 ~ 3.4 mm
• Specimen: Polyurethane Film (Artificial Skin)
• Power Supply: AC 100-240V 50/60Hz (modifiable to local requirement)
• Instrument Dimension: 400 mm (W) x 270 mm (D) x 370 mm (H)
• Net Weight: 15 kg

Configurations
Standard configurations: instrument, micro-printer, polyurethane film (artificial skin).

Characteristics / Technical Specifications

• Model: CCL-02
• Brand: Saicheng Instrument
• Test Range: 0 ~ 20 N (50 N Optional)
• Resolution: 0.001 N
• Force Accuracy: ±0.5% FS
• Loading Speed: 0 ~ 500 mm/min (Adjustable)
• Needle Tubing Size: 0.18 ~ 3.4 mm
• Specimen: Polyurethane Film (Artificial Skin)
• Power Supply: AC 100-240V 50/60Hz (modifiable)
• Instrument Dimension: 400 x 270 x 370 mm (W x D x H)
• Net Weight: 15 kg
