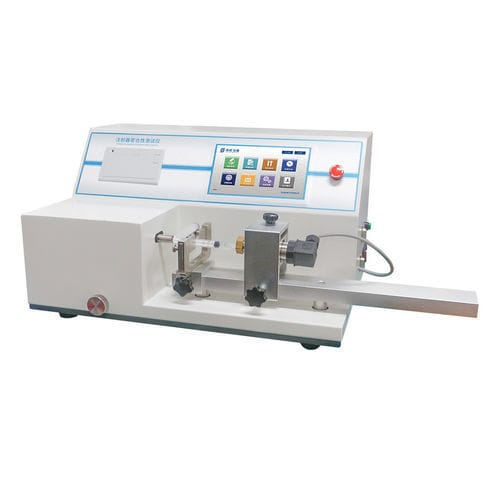

Pressure testing machine ZY-02

pressure leakautomaticfor syringes

Product Introduction
The ZY-02 Positive Pressure Tightness Tester is a precision instrument for assessing liquid leakage resistance of medical injection systems, including hypodermic syringes, prefilled syringes and insulin pens. It supports routine QA and GMP-compliant production testing.

Key Features

• 7-inch color touchscreen with graphical user interface (GUI) for test setup and real-time monitoring
• Fully automatic control of lateral force and axial pressure with one-button operation
• Real-time display and recording of lateral force and axial pressure to ensure measurement traceability
• Automatic data storage with retention after power-off and standard USB export
• Integrated micro-printer for immediate printing of test reports
• Safety functions: emergency stop, overload protection and status alarms
• Multi-level user permissions and audit trail compatible with GMP
• ISP online control and firmware upgrade for remote function updates

Test Standards

• ISO 7886 – Sterile hypodermic syringes for single use
• GB 15810-2019 – Sterile syringes for single use

Test Applications
Suitable for routine leakage testing of sterile syringes, disposable syringes and prefilled syringes used in pharmaceutical production and device quality control.

Technical Specifications

• Lateral Force: 0.25 N – 3 N
• Force Accuracy: 1% FS
• Axial Pressure: 0 – 400 kPa
• Pressure Accuracy: 1% FS
• Nominal Capacity: 1 – 60 mL
• Test Time: 0 – 9999 s (adjustable)
• Power Supply: AC 100-240V 50/60Hz (modifiable to local requirement)
• Instrument Dimensions: 350 mm (W) x 700 mm (D) x 300 mm (H)
• Net Weight: 15 kg

Configurations
Standard configuration includes instrument, integrated micro-printer and test fixture. Additional fixtures can be supplied to accommodate different syringe types.

Please Note
Specifications are subject to change without notice. The manufacturer reserves the right of final interpretation and revision.
