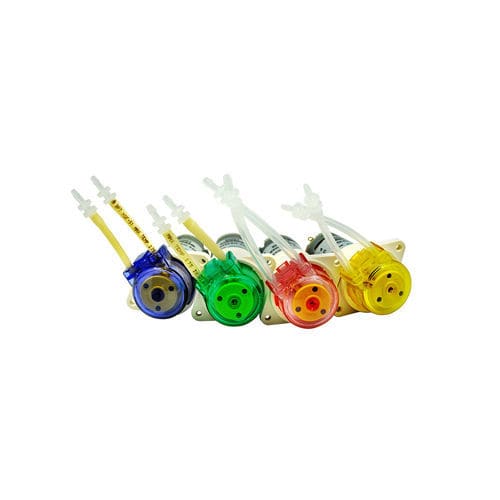

Peristaltic pump KFS
for chemicalswith brushless DC motorself-priming

peristaltic pump
peristaltic pump
peristaltic pump
peristaltic pump
peristaltic pump
peristaltic pump
Add to favorites
Compare this product

Go to the Kamoer Fluid Tech (Shanghai) Co.,LTD. website for more information

Characteristics

Fluid
for chemicals
Operation
with brushless DC motor
Priming
self-priming
Technology
peristaltic
Mobility
stationary
Domain
industrial
Voltage
24 V, 12 V, 6 V
Flow

Max.: 0.122 l/min
(0.03223 us gal/min)

Min.: 0 l/min
(0 us gal/min)

Fluid temperature

Max.: 132 °C
(269.6 °F)

Min.: -51 °C
(-59.8 °F)

Input diameter

Max.: 3 mm
(0.118 in)

Min.: 1 mm
(0.039 in)

Output diameter

Max.: 5 mm
(0.197 in)

Min.: 3.3 mm
(0.13 in)

Length

81 mm, 90 mm
(3 in, 4 in)

Width

56.6 mm
(2.23 in)

Description

Imported material special design long lifetime Features Suitable for viscous liquid and non-viscous liquid Imported raw materials for the gearbox Smallest peristaltic pump, weight only for 90g High reliability, low noise Lifetime for the motor: 800H Tubing for selection: Silicone tubing, imported PharMed, imported Masterflex Viton tubing working environment: temperature 0-40℃、humidity＜80% Appilaction Unmanned aircraft sprays，Cleaning robot，Sweeping robot (Please us message sbout color, or we will send you the purple, thanks)
