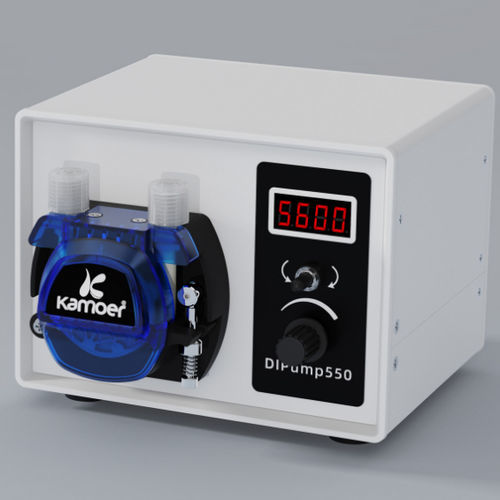

Peristaltic pump DIP

for chemicalsmanualself-priming

The digital tube displays the real-time speed and flow Stepper motor precise control, speed adjustment resolution 0.1 rpm Support start-stop, reversing, speed regulation, calibration, reverse suction and other functions Rich control methods, support rotary encoder, foot switch, external analog (4-20mA and 0-5V), 485 communication (Modbus) control Support power-off memory function, can automatically save the operating parameters of the last power-off Support automatic cycle, semi-automatic cycle, manual three working modes Supports running by speed and running by flow Applications Laboratory: liquid transfer, reagent dispensing Industrial process: such as pumping hydraulic oil Fine chemicals: such as cosmetic packaging, slurry recycling and filtration Food Process: Beverage Filling ★ Automatic circulation ★ Semi-automatic cycle ★ Manual start/stop ★ Positive/Reverse ★ Speed control ★ Parameter memory Basic Parameters Voltage: 24V Current: 2A max Pump tube: Siiicone/BPT Multi-machine Interconnection: Max 15 pieces pumps connection Power supply: External power adapter Range of rotation: 0.1rpm-400rpm Speed adjustment resolution: 0.1rpm Control method: Encoder, toggle switch, external analog signal control, RS485 communication control, foot switch control External analog signal control: 4-20mA, 0-5V Display mode: LED 4-digit digital tube, Speed display, duration display Working mode: Fully automatic cycle, semi-automatic cycle, manual Support function: Start and stop, forward and reverse, speed adjustment, etc.
