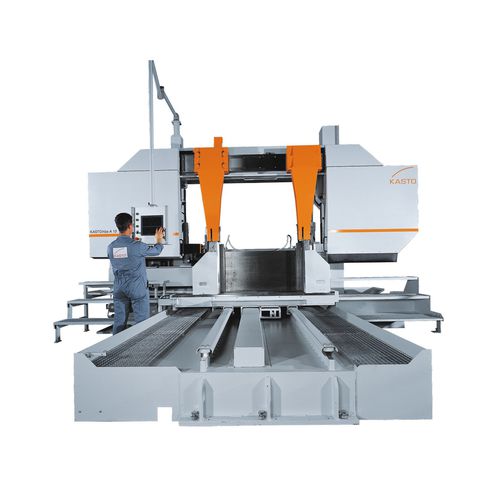

Band saw HBA U series
cut-offfor metalsfor profiles

band saw
band saw
band saw
band saw
band saw
band saw
band saw
band saw
band saw
Add to favorites
Compare this product


Characteristics

Technology
band, cut-off
Treated material
for metals
Applications
for profiles, for tubes
Other characteristics
semi-automatic, horizontal, hydraulic, high-performance, large format, gantry type
Round piece diameter

Min.: 300 mm (12 in)

Max.: 1,720 mm (68 in)

Description

Fully hydraulic and automatic high-performance bandsawing machine of robust construction, with saw blade moving parallel in horizontal direction, for cutting of profiles, tubes and solid material of all qualities and of material which is difficult to cut (e.g. titanium, Hastelloy, Inconel). •Hydraulic horizontal clamping vise with side shift cylinder of the fixed clamping jaw •Saw head and band guides adjust automatically via light barriers to material height and material width. •Hydraulically preloaded carbide slide guides of the saw blade •Hydraulic and electronic control of saw blade tensioning •Protective fence on infeed side Technical data: Cutting range 1.060 x 1.260 mm / 1.060 x 1.060 mm / 1.060 mm Clamping range 300 - 1.260 mm Smallest dimension to be cut Ø 300 mm Shortest remnant length individual cut 20 mm Shortest length of cut-off piece 10 mm Mass and height: Length 1.700 mm Width incl. chip conveyor 6.460 mm Width without chip conveyor approx. 5.470 mm Height 3.420 mm Total weight 10.500 kg Material support hight 700 mm
