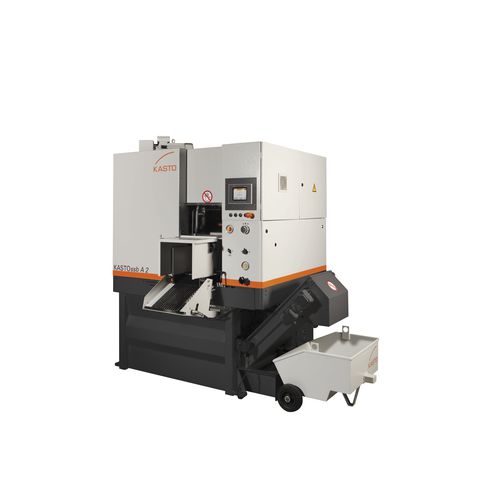

Band saw SSB A 2
cut-offfor metalsfor profiles

band saw
band saw
band saw
band saw
band saw
band saw
band saw
Add to favorites
Compare this product


Characteristics

Technology
band, cut-off
Treated material
for metals
Applications
for profiles, for tubes
Other characteristics
automatic, vertical, hydraulic, high-performance
Round piece diameter

Min.: 0 mm (0 in)

Max.: 260 mm (10 in)

Description

Fully hydraulic and automatic high-performance bandsawing machine of robust construction, with saw blade moving parallel in vertical direction, for cutting of profiles, tubes and solid material of all qualities, including difficult to cut material (e.g. titanium, Hastelloy, Inconel). •Totally enclosed installation provides high safety and excellent noise damping •Sturdy clamping vice system permits high cutting accuracy and reliable clamping of the workpiece •Vertically cutting saw blade optimizes chip flow •Blade exchange is easy and virtually maintenance free •Minor coolant loss and easy cleaning Technical data: Cutting range 260x 260 mm / 260 mm Cutting range bundle width 150 - 260 mm Cutting range bundle height 0 - 200 mm Clamping range 0 - 260 mm Smallest size to be cut Ø 10 mm Shortest length of cut-off piece 5 mm Minimal remnant length, automatic Operation 110mm Minimal remnant length, single cut 10mm Dimensions and weights: Length 1.670 mm Width 2.080 mm Height 2.130 mm Material support height 950 mm Total weight 2200 kg
