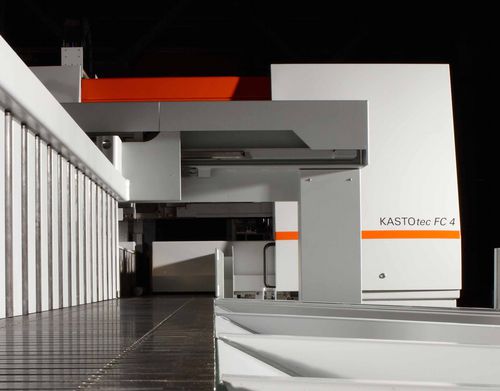

Band saw TEC FC series

cut-offfor steelfor profiles

Fully hydraulic and automatic high-performance bandsawing machine of robust construction, with saw blade moving parallel in horizontal direction, for cutting of round, square and flat material, of tubes and profiles of all qualities, particularly for tool steels and material which is difficult to cut such as titanium, Hastelloy, Inconel etc. •Sawband guide via hydraulically pretensioned carbide slideways •Electronic monitoring of the hydraulic blade tension •Infinitely variable cutting speed, to be adjusted at central control panel •Fully automatic, rapid height adjustment of the saw unit via light barrier •Hydraulic horizontal vices, clearance stroke is standard Technical data: Cutting range Cutting range 430 x 430 / 430 x 430 / 430 mm Clamping range 0 - 430 mm Smallest dimension to be cut 10 x 10 mm Shortest length of residual piece, single cut 10 mm Shortest remnant length in automatic operation, possible (only if the material has a perfect geometric surface) 35 mm Shortest cut-off length 10 mm Shortest remnant length in magazine operation with change of bar, possible only if the material has a perfect geometric surface 50 mm Smallest size to be cut in magazine operation with change of bar 20 x 20 mm
