band saw / for metals / for profiles / for tubes
miwin U 4.6

Add to MyDirectIndustry favorites
Compare this product
band saw / for metals / for profiles / for tubes band saw / for metals / for profiles / for tubes - miwin U 4.6
{{requestButtons}}

Characteristics

  • Technology:

    band

  • Treated material:

    for metals

  • Applications:

    for profiles, for tubes

  • Other characteristics:

    semi-automatic, CNC, electric, with touch screen control

Description

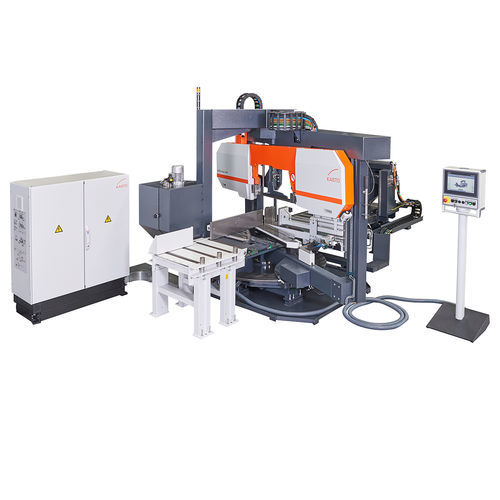

KASTOmiwin U 4.6

This two-column guided band saw for single cuts and miter jobs (-45 ° / + 60 °) is characterized by a frequency-controlled, infinitely adjustable blade speed (12-150 m / min), a cutting strip, which is turning with the saw head, of wear-resistant spring steel as material support, an electric motor-driven saw feed and a hydrau-lic material clamping. The hydraulic material clamping is automatically hydraulically shifted depending on the positive or negative cutting angle. Optionally, the saw can be ordered with a 34 or 41 mm saw blade. The standard SmartControl offers optimal machine operation.

All advantages at a glance:

•Fast, accurate material feed with gear rack
•No wear of the material support due to swinging support table right next to the sawblade
•Low burr formation
•Exact parallel material clamping due to movable vice. Parts can’t jam (Wedge).
•Optimized cutting times through KASTOrespond
•Constant saw feed by means of ball screw spindle
•Electrically powered chip removal brush
•Low torsional load (bladetwist) on the sawblade for a long bladelife
•Automatic electric guidearm adjustment
•Accurate mitre positioning

Technical data

Cutting range:

90° : 360 / 460 x 360 / 360 x 360 mm
+ 45° : 360 / 340 x 340 / 340 x 340 mm
+ 60° : 250 / 220 x 340 / 220 x 220 mm
- 45° : 240 / 340 x 340 / 340 x 340 mm
minimum remnant length (single / automatic)30 /<200

Mass and weight:

Length (1.500 mm feed) x width x height:
3.950 x 3.300 x 1.950 mm

Length (3.000 mm feed) x width x height:
5.450 x 3.300 x 1.950 mm

Material support height:
700 mm
