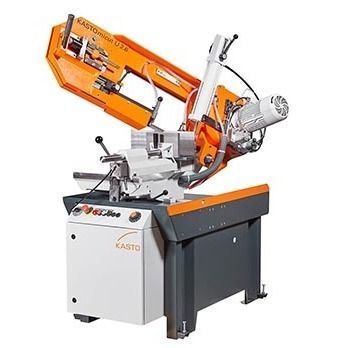

Band saw KASTOmicut U 2.6

miterhorizontalfor metals

Product overview
Semi-automatic swiveling frame bandsaw for straight and mitre cutting of tubes, profiles and solid materials in workshop environments. Infinitely variable cutting speed and hydraulically controlled feed provide sensitive, precise semi-automatic cutting for extended blade life.

Key details

• Saw type: Bandsaw
• Cutting option: Straight and mitre cut
• Automation: Semi automatic
• Materials: Structural steels, Stainless steel, Tool steel
• Material width (W): 310 mm
• Material height (H): 260 mm

Characteristics

• Hydraulically controlled saw feed
• Rotary table as material support
• Hydraulic material clamping
• Infinitely adjustable cutting speed (frequency controlled)
• Mitre angle on both sides from +60° to -45°

Note
This product is only available in European markets.

Technical data — Cutting range
Cutting range 90° round (Solid/Tube): 160 mm / 6.3 in
Cutting range 90° flat (W x H) (Tube): 310 x 260 mm / 12.2 x 10.24 in
Cutting range 90° square (Solid/Tube): 160 x 160 / 260 x 260 mm / 6.3 x 6.3 / 10.24 x 10.24 in
Cutting range +45° round (Tube): 220 mm / 8.66 in
Cutting range +45° flat (W x H) (Tube): 200 x 200 mm / 7.87 x 7.87 in
Cutting range +60° round (Tube): 140 mm / 5.51 in
Cutting range +60° flat (W x H) (Tube): 140 x 140 mm / 5.51 x 5.51 in
Cutting range -45° round (Tube): 240 mm / 9.45 in
Cutting range -45° flat (W x H) (Tube): 200 x 260 mm / 7.87 x 10.24 in
Cutting range -45° square (Tube): 210 x 210 mm / 8.27 x 8.27 in
Shortest remnant length: 30 mm / 1.18 in

Technical data — Dimensions and weight
Length: 760 mm / 29.92 in
Width: 1620 mm / 63.78 in
Height, saw head lowered position: 1690 mm / 66.54 in
Height, saw head in highest position: 2040 mm / 80.31 in
Material support height: 950 mm / 37.4 in
Total weight: 510 kg / 1124.36 lbm

Technical data — Performance characteristics
Total power: 2 kW / 2.68 hp
Saw motor, power – frequency controlled: 1.5 kW / 2.01 hp
Cutting speed infinitely variable – frequency controlled: 20 - 110 m/min / 65.62 - 360.89 ft/min
Dimensions of saw blade: 3180 x 27 x 0.9 mm / 125.2 x 1.06 x 0.04 in
Saw blade guides: lateral and back roller guide, replaceable
Material clamping: mechanical
Cutting feed: hydraulic, infinitely variable
Saw blade tension: mechanical
Saw blade cleaning: by synchronously running, easily replaceable wire brush

Specifications

• Model: KASTOmicut U 2.6
• Saw type: Bandsaw
• Automation: Semi automatic
• Cutting options: Straight and mitre cuts (mitre range +60° to -45°)
• Material capacity (W x H): up to 310 x 260 mm
• Max round capacity (90°): 160 mm (solid/tube)
• Infinitely variable cutting speed: 20 - 110 m/min
• Total power: 2 kW
• Saw blade size: 3180 x 27 x 0.9 mm
• Total weight: 510 kg
• Shortest remnant length: 30 mm
