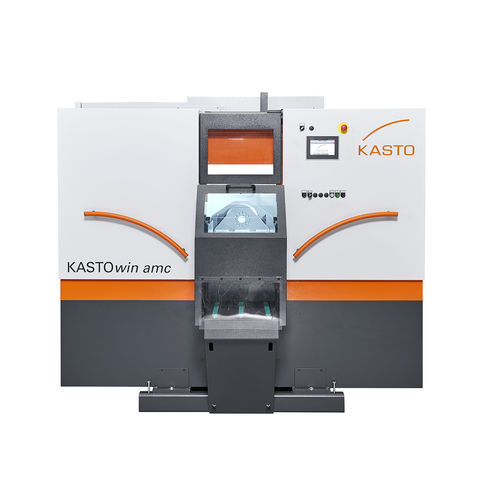

Band saw KASTOwin amc

for metalshigh-performanceautomatic

KASTOwin amc - additive manufacturing cutting Created as the final missing step in the process chain: • Innovative sawing concept for additively manufactured components • Accurate cut positioning to minimize tolerance requirement of the printing area • Easy, user-friendly handling • Closed work space • Machine prepared for a customer-supplied suction unit Key features of the saw specially developed for cutting additively manufactured components: • High-performance band saw machine for individual cuts of additively manufactured components of materials which are difficult to cut • Optimum operator protection - full machine covering according to the latest CE criteria • A simple, easily accessible machine cover allows the operator to load and unload the base plate by opening the protective doors • Automatic operated turning device - precise positioning of the workpieces at 180°. The cut-off components fall into a correspondingly prepared collecting container in order to prevent any unnecessary risk to the operator or to damage the components • Machine prepared for connection to a suction unit provided by the customer • Fast movement by servo drives and ball screw spindle for material feed (turning device) and linear-guided saw frame • Effective material utilization by input of the plate thickness with subsequent automatic height adjustment of the saw unit • Visual inspection window in the material removal flap / individual removal of the components possible by simple machine pausing
