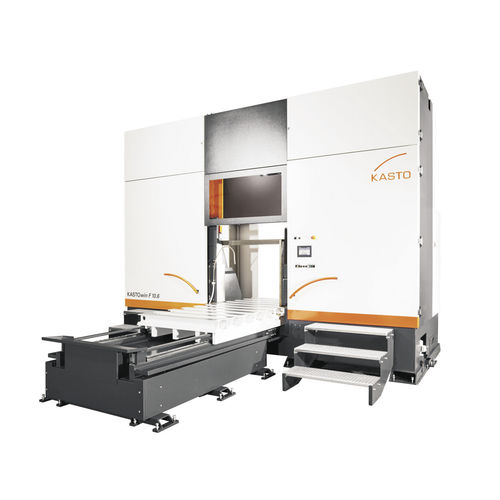

The KASTOwin F 10.6 is also available with a moveable material support table. This makes it possible to feed in and position heavy, bulky stock such as ingots, large tools or offset shafts easily and reliably.
Using the integrated table the material can be easily feed in the machine. Precision feed is achieved by means of a servo drive and a ball screw spindle.
KASTO offers an extensive range of accessories: Horizontal vice, magnetic clamping plate for remnants, prism mounting, packers, support surfaces with wearing plates.
Please find additional information concerning the basic machine under the type description for the machine KASTOwin A 10.6.
The bullet points describe above pictures:
•Reliable feed process for heavy workpieces
•Table is moved by two linear guides with eight linear roller bearings and by means of a ball screw spindle
•Massive construction of table
•Support length of table: 102.36 in. / travel distance of 145.67 in
•Table travels far out of the machine to guarantee a barrier-free supply of material
