Humidity data-logger RF ValProbe II

temperature4-20mAwireless

Description
Wireless high-accuracy measurement of temperature and humidity. The Kaye RF ValProbe II Wireless Data Logger integrates RF Mesh technology with enhanced capabilities for thermal validation and temperature monitoring. The operating range of the loggers is -40°C to +60°C and the temperature sensor range is -200°C to +200°C, making them suitable for real-time RF validation and monitoring of environmental chambers, warehouses, freezers, refrigerators, and steam-in-place (SIP) applications. The RF ValProbe II system uses a 2.4 GHz RF Mesh network and wireless data logging, together with multiple redundant data storage, to provide ultra-reliable communications and storage of critical validation data. The device includes additional safeguards to guarantee data integrity, storage, and compliance with regulatory requirements.

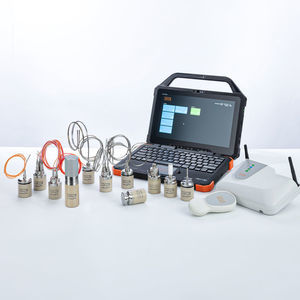

System composition

• RF Wireless Data Loggers

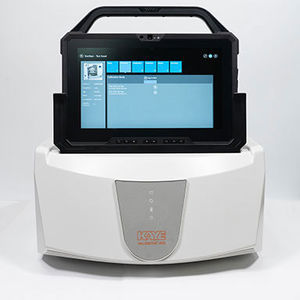

• Base station (collects data)
• Software for data management and reporting

Data types and supported inputs

• Temperature
• Humidity
• Any 4–20 mA output
• Any 0–10 V output

Key features

• 2.4 GHz RF Mesh network with self-configuring mesh capabilities
• Multiple redundant data storage for robust data retention
• High accuracy temperature and humidity measurement
• Operating range: -40°C to +60°C (logger). Temperature sensor range: -200°C to +200°C

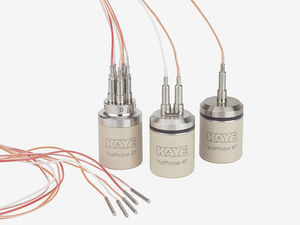

• Support for 2-channel and 5-channel RF temperature loggers
• Automatic data collection system
• Extensive graphing, reporting and calculation capabilities to facilitate analysis and regulatory-compliant reports
• Designed for validation and monitoring in laboratory, sterilization, freezer and refrigerator environments

Applications (as listed)

• Laboratory
• Sterilization
• For freezer
• For refrigerator

Other characteristics

• Wireless

Caractéristiques / spécifications techniques

• Data type: temperature, humidity
• Applications: laboratory; sterilization; freezer; refrigerator
• Other characteristics: wireless communication
• Logger operating range: -40°C to +60°C
• Temperature sensor range: -200°C to +200°C
• Network: 2.4 GHz RF Mesh
• Supported analog inputs: 4–20 mA, 0–10 V
• System components: RF wireless data loggers, base station, management/reporting software
• Features: redundant data storage, self-configuring mesh, automatic data collection, graphing/reporting/calculation tools
• Intended use: real-time validation and environmental monitoring (chambers, warehouses, freezers, refrigerators, SIP)
