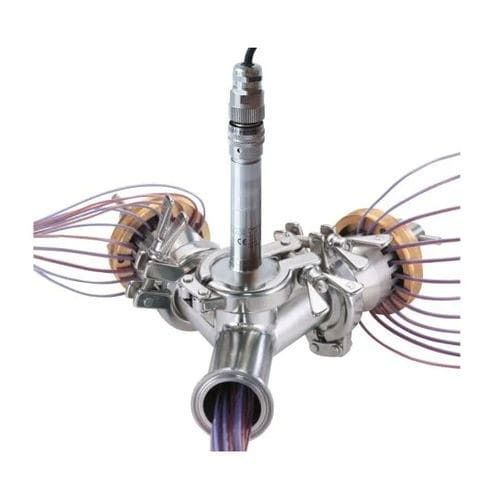

Absolute pressure transducer 1-5 Vbuilt-in transmitterflange
Add to favorites
Compare this product
Characteristics
- Pressure type
- absolute
- Output
- 1-5 V
- Electrical connection
- built-in transmitter
- Mounting
- flange, flange-mount
- Applications
- for the food industry, for pharmaceutical applications
- Other characteristics
- precision, temperature-compensated, hygienic, self-powered, pre-calibrated
- Pressure range
Max.: 4 bar
(58.02 psi)Min.: 0 bar
(0 psi)- Precision
0.2 %
- Process temperature
Max.: 140 °C
(284 °F)Min.: 110 °C
(230 °F)
Description
Overview
Absolute high‑precision pressure transducer designed for autoclaves and steam sterilization environments. Provides pressure measurements compliant with EN554, EN285 and ISO‑17665. Integrates with Kaye Validator AVS and Validator 2000 and requires no external power supply.
Key features
Applications
Specifications
Software support
The Kaye Validator Report Wizard provides EN554, HTM2010 and ISO‑17665 compliant reports and features:
Absolute high‑precision pressure transducer designed for autoclaves and steam sterilization environments. Provides pressure measurements compliant with EN554, EN285 and ISO‑17665. Integrates with Kaye Validator AVS and Validator 2000 and requires no external power supply.
Key features
- Engineered for harsh steam sterilizer and SIP environments
- Specified performance across the full autoclave temperature range
- Direct connection to a 1.5" tri‑clover flange for hygienic mounting
- ISO‑17025 traceable calibration across pressure and temperature ranges
- Easy integration with Kaye Validator systems without additional wiring
- Operates without external power
Applications
- Autoclave monitoring and control
- Steam sterilization processes
- SIP (Sterilize‑In‑Place) systems
Specifications
- Type: Absolute pressure transducer
- Range: 0 bar to 4 bar (59 psia) absolute
- Sensitivity / Output: 1V to 5V
- Combined non‑linearity & hysteresis: ±0.2%
- Temperature compensated range: 110°C – 140°C
- Accuracy: 10 mbar (0.147 psi) within 110°C – 140°C
- Calibration: Pressure calibration performed at 23°C and 121°C; ISO‑17025 traceable
- Mechanical connection: Direct 1.5" tri‑clover flange
Software support
The Kaye Validator Report Wizard provides EN554, HTM2010 and ISO‑17665 compliant reports and features:
- Saturated pressure and temperature graph reports
- Automatic equilibration pass/fail determination
- Automatic Tb and Tb+3 limit determination based on temperature vs saturated temperature or pressure vs saturated pressure
