Temperature data-logger ValProbe RT 5-Channel

wirelessradio frequencyfor ovens

Overview

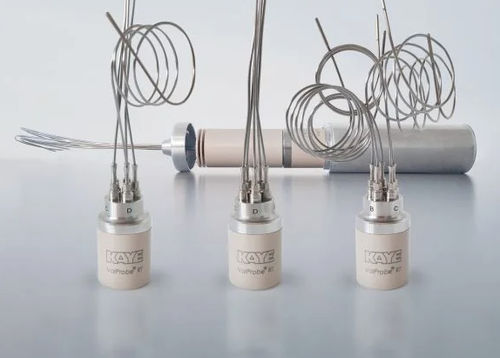

ValProbe RT loggers with bendable sensors cover a wide temperature range from -85°C to +400°C. They are offered in single-, dual- and five-channel bendable-sensor versions. Precision platinum RTD sensing provides high measurement accuracy while the logger electronics are designed for extended battery life. Operator-programmable sample rates start at 1 second and each sensor can store up to 100,000 data points. Antenna diversity ensures robust RF communication reliability.

Available models / Variants

• 1- and 2-Channel Bendable Logger: sensor temperature range -85°C to 400°C. Single and dual bendable sensors available. Sensor length options: 12", 24", 36". Tip diameter: 2.4 mm (0.095").
• 5-Channel Bendable Logger: sensor temperature range 0°C to 400°C. Five bendable sensors. Sensor length: 24". Tip diameter: 2 mm (0.078").

Applications

• Steam sterilizers
• Dry heat sterilizers
• Steam-in-Place (SIP) processes
• Water cascade/fall sterilizers
• Incubators
• Stability chambers
• Freezers
• Freeze drying / lyophilization processes
• Pressure vessels and reactors

Technical summary (excerpt)

• Sensor type: Single, Dual or Five precision RTD sensors
• Sensor lengths: 12", 24", 36" (305, 610, 915 mm) — 5-channel uses 24" (610 mm)
• Tip diameters: 0.095" (2.4 mm) and 0.078" (2 mm)
• Measurement range: -85°C to 400°C (some 5-channel variants 0°C to 400°C)
• Accuracy: -85°C to 140°C: ±0.1°C; 140°C to 400°C: ±0.25°C
• Logger dimensions: H 1.9" (48 mm); Ø 1.4" (36 mm)
• Materials: Stainless steel 316L and PEEK
• Battery: Field-replaceable 3.6 V lithium cell
• Sampling rate: Operator-programmable starting at 1 s
• Data storage: Up to 100,000 samples per sensor in non-volatile memory
• Real-time clock accuracy: < 15 sec/day
• Calibration: NVLAP / DAkkS calibration available; automated user verification capability
• Sensing element: Precision platinum RTD
• Environmental ranges: Operational temperature (device body) -85°C to 140°C; Pressure 0–5 bar absolute; Humidity 0–100% condensing
• Regulatory: UL, CE

Key features

• Wide measurement range from -85°C to +400°C
• Available as single-, dual- and five-channel bendable-sensor loggers
• High-accuracy platinum RTD sensing
• Long service life with field-replaceable battery
• Programmable sample rates and large non-volatile data storage
• Robust RF communication using antenna diversity
• Corrosion-resistant stainless steel 316L and PEEK construction
• NVLAP / DAkkS calibration and automated user verification options

Characteristics / Technical specifications

• Data type: Temperature
• Distinctive feature: Bendable sensors
• Temperature limits: Max. 400 °C (752 °F); Min. -85 °C (-121 °F)
• Sensor configurations: Single, Dual, Five (model-dependent)
• Sensor lengths: 12", 24", 36" (305, 610, 915 mm) — 5-channel: 24" (610 mm)
• Tip diameters: 0.095" (2.4 mm) and 0.078" (2 mm)
• Device measurement range: -85°C to 400°C (some 5-channel variants 0°C to 400°C)
• Accuracy: ±0.1°C (-85°C to 140°C); ±0.25°C (140°C to 400°C)
• Logger dimensions: H 1.9" / Ø 1.4" (48 mm / 36 mm)
• Materials: Stainless steel 316L, PEEK
• Battery: Field-replaceable 3.6 V lithium
• Sampling rate: From 1 s (programmable)
• Memory: 100,000 samples per sensor, non-volatile
• RTC accuracy: < 15 sec/day
• Calibration: NVLAP / DAkkS
• Sensing element: Precision platinum RTD
• Environmental: Device body temperature -85°C to 140°C; Pressure 0–5 bar abs.; Humidity 0–100% condensing
• Compliance: UL, CE
