Sensor surface adapter thermalbrass
Add to favorites
Compare this product
Characteristics
- Applications
- for sensor surface
- Type
- thermal
- Material
- brass
- Diameter
40 mm
(1.575 in)- Length
14 mm
(0.55 in)
Description
Overview

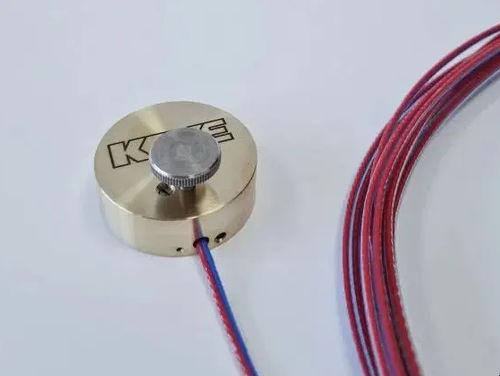

The Kaye Sensor Surface Adapter is a field-proven accessory for surface temperature measurement with Kaye temperature sensors. Engineered for reliable contact on flat surfaces and compatible with vacuum environments such as freeze dryers, the adapter secures various Kaye sensors, improves thermal coupling with dedicated pads, and reduces setup-related variability to ensure reproducible measurements for qualification and process monitoring.
Main features
Applications
Other characteristics
Technical specifications
The Kaye Sensor Surface Adapter is a field-proven accessory for surface temperature measurement with Kaye temperature sensors. Engineered for reliable contact on flat surfaces and compatible with vacuum environments such as freeze dryers, the adapter secures various Kaye sensors, improves thermal coupling with dedicated pads, and reduces setup-related variability to ensure reproducible measurements for qualification and process monitoring.
Main features
- Variable hole diameters and a spring-loaded fixation enable secure mounting of different Kaye sensors.
- Compatible with Kaye stainless steel Type-T thermocouples, Kaye ValProbe and ValProbe RT flexible/bendable Pt sensors, and Kaye Teflon thermocouples.
- Thermal contact pads enhance surface contact and improve temperature transfer between surface and sensor.
- Designed for precise, repeatable surface temperature measurements in freeze-drying and other vacuum applications.
- Multiple connection options provide flexibility across sensor types.
Applications
- Surface temperature measurement for sensors mounted on plates or product surfaces
- Freeze-drying qualification and process monitoring (including vacuum environments)
Other characteristics
- Brass
- Stainless steel
- Flexible
- T-shaped
Technical specifications
- Material: Brass
- Diameter: 40 mm
- Height: 14 mm
- Compatible sensor fixation options and details:
- 1.2 mm - Ideal for Kaye stainless steel Type-T thermocouple (self-locking)
- 2.5 mm - Ideal for Kaye ValProbe and ValProbe RT loggers with flexible or bendable Pt sensors (self-locking)
- 3.7 mm - Ideal for Kaye Teflon thermocouples (3- and 7-stranded) - secured via screw connection
- Spring-loaded mechanism for secure fixation
- Special thermal pads to improve surface contact and thermal transition
- Suitable for vacuum environments (e.g., freeze dryers)
- Designed to minimize setup errors and enhance measurement accuracy
- Compatible with: Kaye ValProbe (RT) Flexible Loggers, Bendable Loggers, Kaye Teflon Thermocouples, Pt-1000 flexible sensors from ValProbe/ValProbe RT lines
