Power measuring instrument 2650

voltagecurrentdigital

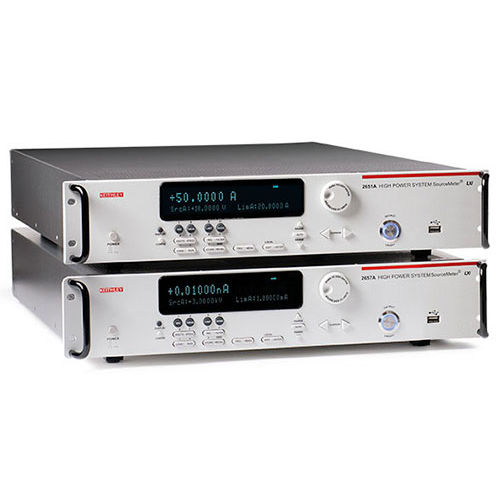

The 2650 Series High Power SourceMeter SMU Instruments are designed specifically for characterizing and testing high voltage/current electronics and power semiconductors, such as diodes, FETs, and IGBTs, high brightness LEDs, DC-DC converters, batteries, solar cells, and other high power materials, components, modules, and subassemblies. They deliver unprecedented power, precision, speed, flexibility, and ease of use to improve productivity in R&D, production test, and reliability environments. Two instruments are available offering up to 3000V or up to 2000W of pulse current power. Highly flexible, four-quadrant voltage and current source/load coupled with precision voltage and current meters - Offers best-in-class performance with 6½-digit resolution. Source or sink (2651A) up to 2,000W of pulsed power (±40V, ±50A) or up to 200W of DC power (±10V@±20A, ±20V@±10A, ±40V@±5A); easily connect two units (in series or parallel) to create solutions up to ±100A or ±80V - Supports characterization/testing of power semiconductors, HBLEDs, optical devices, solar cells, and GaN, SiC, and other compound materials and devices. Applications include semiconductor junction temperature characterization; high speed, high precision digitization; electromigration studies; and high current, high power device testing. Source or sink (2657A) up to 180W of DC or pulsed power (±3000V@20mA, ±1500V@120mA) - Provides the high voltage required for power semiconductor device characterization and testing, including GaN, SiC, and other compound materials and devices, breakdown and leakage testing to 3kV, and characterization of sub-millisecond transients.
