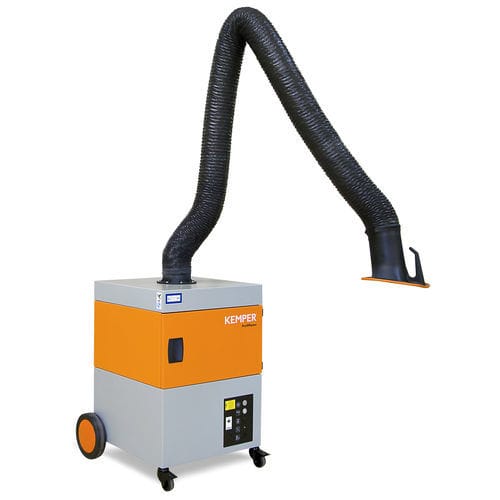

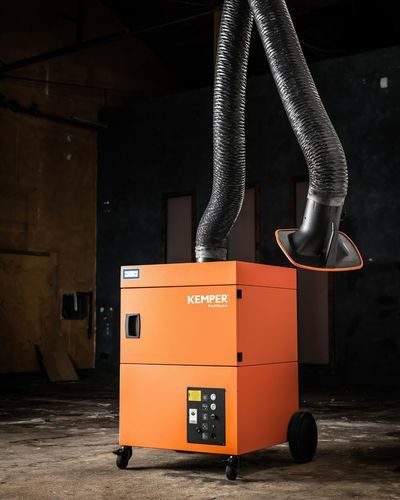

Mobile fume extractor ProfiMaster

weldingwith in-line filterwith extraction arm

Product description
ProfiMaster is a mobile welding smoke filter unit in robust construction for occasional to frequent use with low to medium smoke and dust loads. The unit uses a high-capacity disposable filter with easy change via a maintenance door. The rotating and swivelling extraction hood provides a 360° working radius and reduces repositioning during welding.

Key features

• Suitable for all materials including high-alloy and chrome–nickel steels
• Designed for low to medium smoke and dust volumes

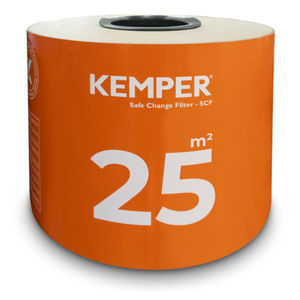

• High-capacity disposable filter with simple replacement
• Rotating and swivelling extraction hood for 360° operation
• Single mobile unit for local fume extraction

Safety and comfortable operation

• Safe operation with rotation field detection
• Maintenance door for quick filter change
• Flow-optimised hood reduces the need for frequent adjustments
• Filter monitoring for increased safety

Applications & materials

• Welding processes: TIG (WIG), MIG/MAG, MMA (stick welding)
• Materials: steel, aluminium, stainless steel
• Recommended use: regular use; occasional to frequent operation

Technical specifications

• Weight: 109 kg
• Dimensions (D × W × H): 828 mm × 797 mm × 977 mm
• Filter stages: 2
• Filter area: 17 m²
• Separation efficiency ≥: 99.5 %
• Motor power: 1.1 kW
• Rated current: 2.3 A
• Sound pressure level: 72 dB(A)
• Max. fan capacity: 2200 m³/h
• Extraction capacity: 1100 m³/h
• Max. negative pressure: 2100 Pa
• Number of extraction arms: 1
• Extraction arm diameter: 150 mm
• Extraction arm length: 3 m
