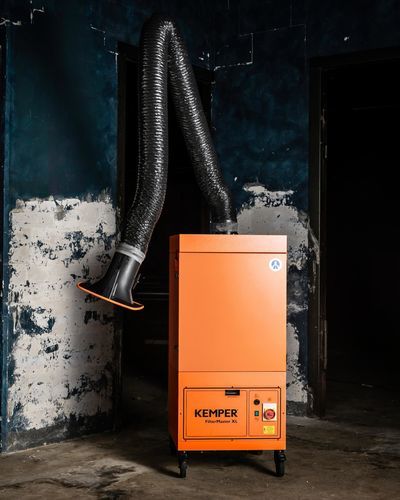

Mobile fume extractor FilterMaster XL

weldingwith self-cleaning filterwith extraction arm

Product overview
Compact industrial welding fume extractor for continuous use. Baseline model with automatic timed filter cleaning and KemTex® ePTFE membrane filter cartridge for ultrafine particles (captures particles < 0.1 µm). Certified W3 IFA for use with chromium-nickel steel.

Key features

• Automatic timed filter cleaning for sustained performance and cost efficiency
• KemTex® ePTFE cartridge with surface filtration for enhanced operator protection
• Flow-optimised extraction hood reducing operator repositioning of the arm
• Rotation-direction monitoring for safe operation
• Designed for high smoke and dust volumes and continuous industrial operation

Applications

• Welding processes: Laser, MIG/MAG, manual electrode (E-hand)
• Materials: Steel, aluminium, stainless steel (including chromium-nickel steel)
• Use cases: Regular use, continuous production environments

Technical data
Model: FilterMaster XL
SKU: 62100102
Weight: 155 kg
Dimensions (D × W × H): 816 × 643 × 1457 mm
Filter stages: 1
Filter area: 10 m²
Separation efficiency ≥: 99.9%
Filter cartridge: KemTex® ePTFE membrane (surface filtration)
Motor power: 1.5 kW
Rated current: 3.2 A
Sound pressure level: 69 dB(A)
Compressed air supply (for cleaning): 5–6 bar
Max. fan capacity: 3000 m³/h
Suction capacity: 1000 m³/h
Max. underpressure: 3000 Pa
Extraction arm diameter: Ø 150 mm
Number of arms: 1
Extraction arm length (options): 2 m, 3 m, 4 m (factory setting: 4 m)

Configuration / options

• Standard delivery: unit with 4 m Ø150 mm arm
• Alternative arm lengths available on request: 2 m, 3 m
• Compressed air supply required for filter cleaning: 5–6 bar
