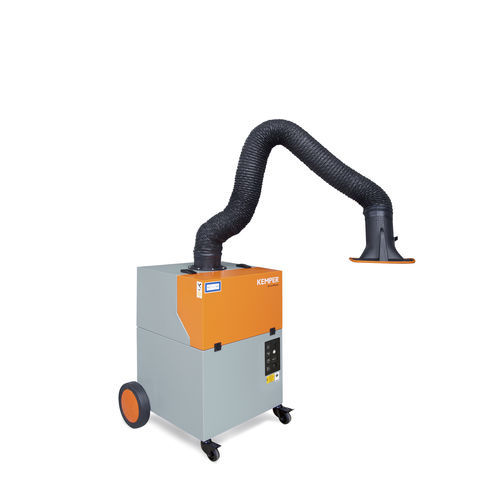

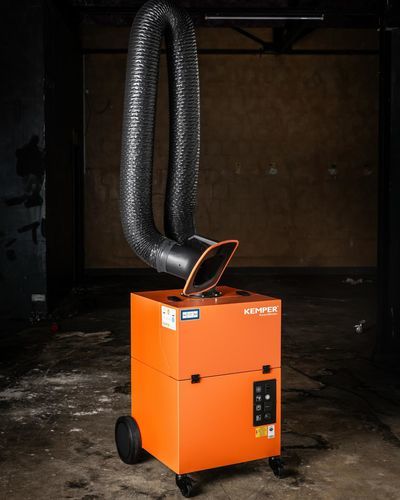

Mobile fume extractor SmartMaster

industrialweldingwith in-line filter

Overview
Compact 3-stage extraction filter unit for occasional welding fume extraction. The rotating and swiveling 360° exhaust hood reduces repositioning during welding. IFA W3 certified for stainless / Chrome‑Nickel steel and suitable for high-alloy materials.

Key usage

• Intended use: occasional use; suitable for occasional to frequent tasks
• Welding processes: TIG, MIG/MAG, Stick welding
• Materials: Steel, Aluminum, Stainless steel (including high-alloy / Chrome‑Nickel)

Highlights

• W3 certification for Chrome‑Nickel stainless steels
• Designed for low smoke/dust volumes
• 360° rotating and swiveling exhaust hood for flexible positioning
• Filter contamination monitoring for increased safety
• Hose connection for flexible use
• Robust design with sliding handle and cable holder

Configuration options

• Exhaust arm variants: flexible exhaust arm (standard) or suction hose and nozzle
• Length of exhaust arm: 2 m (≈ 7 ft) standard or 3 m (≈ 10 ft) option

Technical data
Dimensions
Weight: 71 kg (157 lbs)
Depth: 753 mm (30 in)
Width: 722 mm (28 in)
Height: 909 mm (36 in)

Filter
Filter stages: 3
Filter area: 13 m² (140 ft²)
Separation efficiency ≥: 99.5 %

Technology
Motor power: 1.1 kW (1.5 hp)
Rated current: 6.7 A
Sound pressure level: 72 dB(A)

Performance
Max. fan capacity: 2200 m³/h (1295 cfm)
Extraction capacity: 950 m³/h (559 cfm)
Max. negative pressure: 1500 Pa

Connections
Number of extraction arms: 1
Extraction arm diameter: 150 mm
Standard arm length: 2 m (option 3 m)

Accessories / consumables

• Protective mesh
• Aluminium pre-filter
• Original spare filters and pre-filter cassettes (manufacturer items)
