Mobile fume extractor ProfiMaster

weldingwith multiple extraction armsautomatic

Product overview

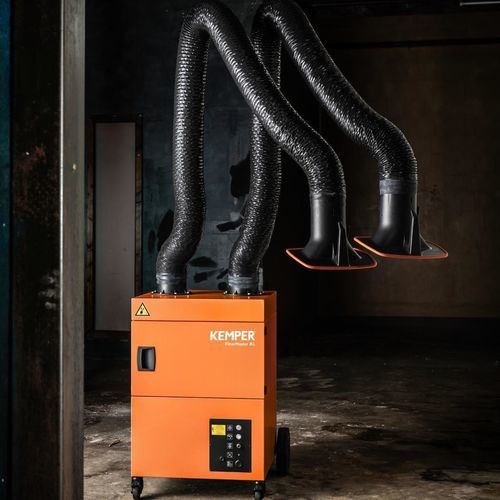

ProfiMaster is an industrial welding fume extractor with two articulated extraction arms for local capture of welding fumes and dust. It uses a high-capacity disposable filter, offers simple filter replacement via a maintenance door, and includes rotation-field detection and filter monitoring for safe operation. The two-arm version enables simultaneous or alternating work at two stations with adjustable extraction performance.

Main benefits

• Effective for low to medium welding fume and dust levels
• Suitable for occasional to frequent use in production workshops
• Two-arm configuration supports two workstations (simultaneous or alternating)
• Compact footprint for space-constrained welding cells

Key features

• High-capacity disposable filter with ≥ 99.5% separation efficiency
• Flow-optimised extraction hood reduces repositioning effort
• Maintenance door for fast and safe filter changes
• Rotation-field detection and filter monitoring for increased operational safety
• Integrated dampers allow regulated extraction per hood

Technical data
Weight: 114 kg
Dimensions (D x W x H): 828 mm x 797 mm x 977 mm
Filter stages: 2
Filter area: 17 m²
Separation efficiency: ≥ 99.5%
Motor power: 1.1 kW
Rated current: 2.3 A
Sound pressure level: 72 dB(A)
Max. fan capacity: 2200 m³/h
Extraction capacity: 1400 m³/h
Max. negative pressure: 2250 Pa
Extraction arms: 2 (diameter 150 mm, length 2 m)

Specifications

• Application: welding fume and dust extraction in industrial workshops
• Suitable materials: carbon steel, aluminium, stainless steel (Cr-Ni)
• Typical welding processes: TIG, MIG/MAG, MMA
• Filter type: disposable cassette (E12 equivalent), 17 m²
• Optional: start-stop automation, extended arm lengths (3 m, 4 m)
