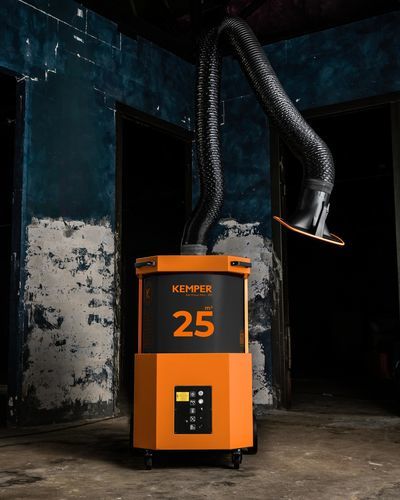

Mobile fume extractor SmartFil

industrialweldingwith extraction arm

Overview
Compact mobile welding fume extraction unit for regular use in welding. SmartFil uses a disposable roll filter with 25 m² filter area (optional 42 m²) and enables contamination-free replacement. Designed for medium fume and dust loads, it provides effective operator protection and economical long service life.

Key features

• Mobile welding fume extractor with 25 m² disposable roll filter (optional 42 m²)
• W3-certified for welding fume filtration
• Contamination-free filter replacement
• Filter monitoring for operational safety
• Flow-optimized extraction hood to reduce repositioning of the extraction arm
• High cost-efficiency due to large filter capacity and long service life

Applications & suitability

• Use profile: regular use, continuous operation possible, occasional to frequent use
• Suitable welding processes: TIG (WIG), MIG/MAG, MMA (stick welding)
• Materials: steel, aluminium, stainless steel (including chrome–nickel steels)
• Designed for medium levels of smoke and dust and frequent operation

Configuration options

• Exhaust arm types: flexible hose or rigid metal tube arm
• Extraction arm lengths: 2 m (standard), optional 3 m or 4 m
• Power supply options: 1 × 230 V / 50 Hz or 3 × 400 V / 50 Hz

Technical specifications

• Weight: 131 kg
• Dimensions (D × W × H): 836 × 795 × 1169 mm
• Filter stages: 2
• Filter area: 25 m² (optional 42 m²)
• Separation efficiency ≥: 99.5 %
• Motor power: 1.5 kW
• Rated current: 3.1 A
• Sound pressure level: 70 dB(A)
• Max. fan capacity: 3000 m³/h
• Extraction capacity: 1100 m³/h
• Number of extraction arms: 1
• Extraction arm diameter: 150 mm
• Extraction arm length: 2 m (standard)

Additional features

• Effective protection of the operator against welding fumes
• Easy integration at mobile workstations
• Optional accessories: enhanced filter classes, start-stop automation, work light
