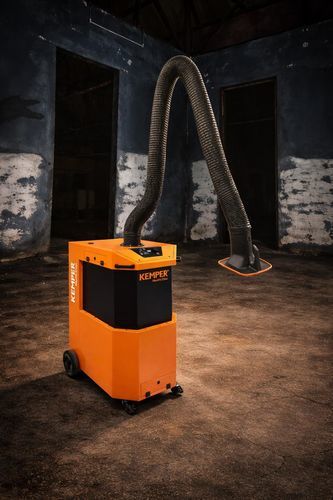

Mobile fume extractor MaxiFil Clean

weldingwith self-cleaning filterautomatic

Overview
Self-cleaning extraction and filter unit for welding fume capture with contamination-free dust discharge. Mobile unit with 360° operating radius, designed for continuous industrial welding applications and large volumes of smoke and particles.

Key features

• Self-cleaning filter with automatic contamination-free dust disposal
• Suitable for all materials including high-alloy (chrome-nickel) steel
• Designed for high levels of smoke and particulate load
• Continuous operation capability for non-stop use
• High mobility and 360° operating radius
• Flow-optimised extraction hood reduces repositioning of the extraction arm
• Phase rotation monitoring for safe operation
• Filter monitoring for enhanced safety

Highlights
The MaxiFil Clean combines a large-area self-cleaning filter (15 m²) with automatic dust removal to minimise maintenance and operating costs. It is engineered for heavy-duty welding fume and dust applications and supports uninterrupted workflows in industrial production environments.

Technical specifications

• Weight: 197 kg
• Dimensions (depth × width × height): 973 mm × 834 mm × 1,350 mm
• Filter area: 15 m²
• Separation efficiency (≥): 99.9 %
• Filter stages: 0
• Motor power: 2.2 kW
• Rated current: 4.4 A
• Sound pressure level: 73 dB(A)
• Compressed air supply: 5–6 bar
• Max. fan capacity: 4,400 m³/h
• Extraction capacity: 1,450 m³/h
• Max. negative pressure: 3,300 Pa
• Number of extraction arms: 1
• Extraction arm diameter: 150 mm
• Extraction arm length: 4 m
