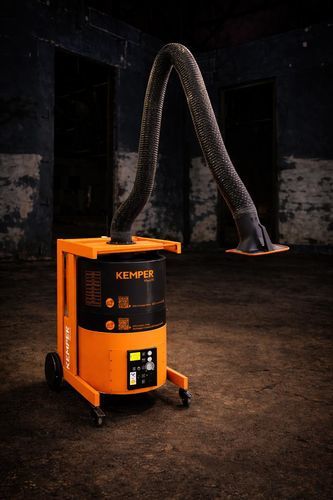

Mobile fume extractor 65 650 AK 100

activated carbon filterwith extraction armdust

Short description
Mobile extraction unit for welding fume and dust collection equipped with an integrated activated carbon filter. MaxiFil combines high filter capacity and contamination-free filter change with a 360° operating radius and strong suction suitable for continuous or regular use with medium smoke/dust levels.

Key features

• Integrated activated carbon filter for gas and odour absorption
• Designed for medium levels of smoke and dust
• High mobility with 360° operating radius
• Contamination-free, safe filter replacement
• Flow-optimized extraction hood reduces need for arm repositioning
• Phase rotation monitoring for safe operation
• Comfortable handling for continuous or regular use

Filter / Operation highlights
The MaxiFil combines large filter capacities (34 m² filter area) with contamination-free filter changes. The additional activated carbon stage absorbs gases and odours. The unit is intended to provide reliable protection against fumes, dust, gases and odours and is suitable for continuous operation in medium smoke/dust applications.

Technical data (table)

• Dimensions (D x W x H): 892 mm x 803 mm x 1109 mm
• Weight: 135 kg
• Filter stages: 3
• Filter area: 34 m²
• Separation efficiency ≥: 99.5 %
• Motor power: 1.5 kW
• Rated current: 3.1 A
• Sound pressure level: 70 dB(A)
• Max. fan capacity: 3000 m³/h
• Extraction capacity: 950 m³/h
• Max. negative pressure: 3200 Pa
• Number of extraction arms: 1
• Extraction arm diameter: 150 mm
• Extraction arm length: 4 m

Recommended applications

• Welding fume extraction in workshops and production areas
• Applications with medium levels of smoke and dust
• Continuous or regular extraction where gas/odour absorption is required

Technical specifications

• Integrated activated carbon filter for gas and odour absorption
• Large disposable filter capacity and easy, contamination-free replacement
• 360° operating radius for flexible positioning
• Flow-optimized hood for reduced operator intervention
• Designed for continuous industrial use at medium dust/smoke loads
