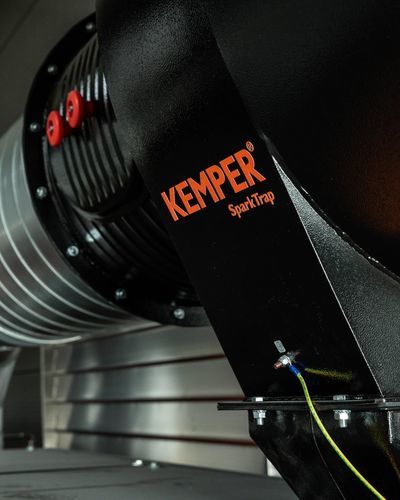

Welding anti-spatter product SparkTrap

Product description
SparkTrap is a pre-separator for sparks, glowing particles and cigarette ends. Installed in ductwork upstream of extraction and filter units, it prevents sparks, coarse particles and cigarette butts from entering the filter system with nearly 100% efficiency. By reducing particulate load on the filter, SparkTrap can extend filter life by up to 300% and reduce the risk of fire during welding, grinding and cutting operations. An optional spark detection system enables automatic shutdown of the downstream filter unit when a threshold is exceeded.

Applications

• Processes with increased fire hazard
• Environments with spark generation
• Welding, grinding and cutting operations
• Integration into ductwork before extraction and filter units

Highlights
SparkTrap provides almost 100% separation of sparks, glowing particles and cigarette ends, prolongs downstream filter service life and can be retrofitted into existing systems. Optional spark detection enhances operational safety through automatic shutdown of the filter unit on alarm.

Benefits and features

• Up to 300% longer filter life, reducing replacement and disposal costs
• Easy integration and retrofitting into systems from any manufacturer
• Lower compressed air consumption and reduced energy costs
• Minimisation of fire risk by pre-separating sparks and glowing particles

Technical data (extract)
Weight: 145 kg
Depth: 710 mm
Width: 3830 mm
Max. volume flow: 8000 m³/h
Dust collection container volume: 30 L

Specifications

• Model: SparkTrap
• Article number (SKU): 196200450
• Available variants (max. volume flow): 2500 / 5000 / 8000 / 12500 / 20000 m³/h
• Function: Pre-separation of sparks, glowing particles and cigarette ends (nearly 100% separation)
• Installation: Installed in ductwork upstream of extraction and filter units
• Optional: Spark detection for automatic shutdown of the filter unit
