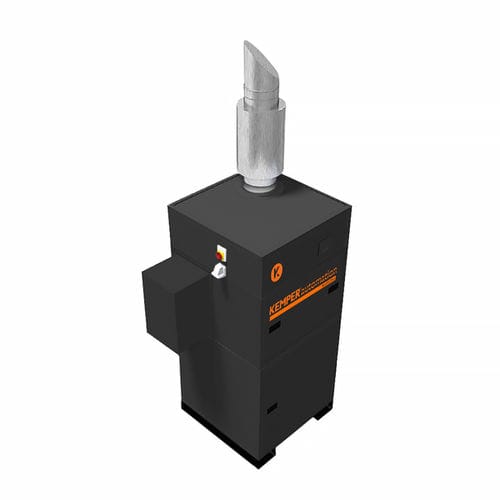

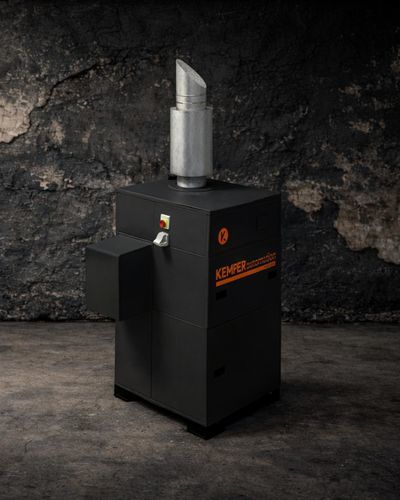

Cartridge filtration system ArcFil Pro

membranefor welding fumesfor grinding machines

Overview
Mobile high-efficiency filtration unit for capture and filtering of welding fumes in robotic welding areas. Compact design enables fast setup and commissioning. Suitable for robotic welding, including laser welding. W3 certification (DIN EN ISO 21904) allows recirculation of filtered air into the production hall. Direct connection to a hood or enclosure covering the robot workspace is provided.

Applications

• High volumes of fumes and dust
• Welding shops and grinding workshops
• Training centers and robotic welding lines
• Laser, plasma and oxy-fuel cutting systems
• Outdoor installation possible

Advantages / Highlights

• Contamination-free dust collection via compressed-air locking of dust containers
• Continuous uninterrupted operation through automatic differential-pressure-controlled filter cleaning
• Low noise emissions (sound pressure level 65 dB(A))
• Significant energy savings when using the optional automatic extraction power control
• User-friendly control via touch display with diagnostics
• Optimal operator protection using KemTex® ePTFE filter cartridges with surface filtration
• Recirculation mode possible (e.g., for chrome-nickel steel) thanks to W3 certification

Technical data
Connections
Air inlet (mm): 450
Air outlet (mm): 450
Dust container volume (L): 192

Dimensions
Depth × Width × Height (mm): 1864 × 1413 × 2110
Weight (kg): 790

Filter
Filter stages: 1
Filter area per element (m²): 10
Separation efficiency (% ≥): 99.9
Number of filter elements: 9
Total filter area (m²): 90

Performance / Drive
Sound pressure level (dB(A)): 65
Compressed air supply (bar): 5-6
Motor power (kW): 5.5
Rated current (A): 10.7
Max. fan capacity (m³/h): 9000
Max. volumetric flow (m³/h): 9000
Operating pressure (Pa): 1750
Minimum vacuum (Pa): 2300
Suction capacity (m³/h): 4500-6480

Features / Specifications

• Model: ArcFil Pro
• Series: Automation-Line
• Manufacturer: KEMPER
• Article no.: 3565
• Certification: W3 (DIN EN ISO 21904) — recirculation possible
• Compatible with robotic welding and laser welding
• Automatic differential-pressure filter cleaning
• KemTex® ePTFE filter cartridges (surface filtration)
• Separation efficiency ≥ 99.9%
• Max. fan capacity: 9000 m³/h
• Weight: 790 kg
