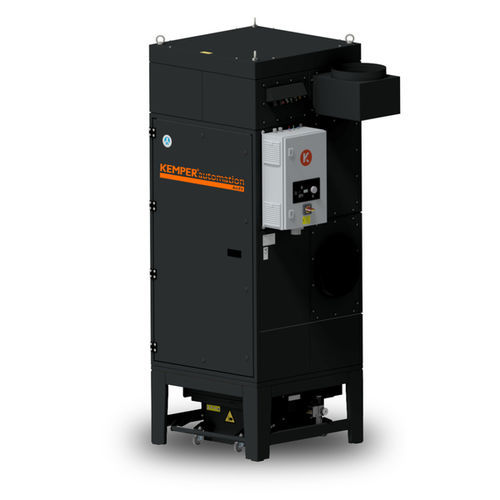

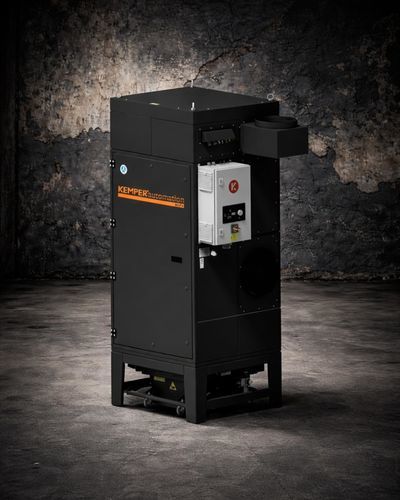

Cartridge filtration system ArcFil

membranefor welding fumes

Overview Powerful mobile extraction and filtration unit designed for clean air in industrial workstations. Specifically intended for welding fumes, dust and metallic vapours. The ArcFil unit from the Automation-Line is delivered ready to use and can be installed and commissioned within seconds thanks to its compact design. With high and effective extraction capacity it is especially suitable for robot welding applications across various processes, including laser welding. The unit connects via multiple duct connection options directly to an extraction hood or a laser cabin covering the robot work area to prevent fume spread into the production hall.

Summary / Short features

• Specifically suited for robot welding applications
• Medium levels of smoke and dust
• Plug-and-play, compact, powerful

Key benefits

• Contamination-free dust collection via lever fixing of the dust collection container
• Considerable energy cost savings with optional automatic volume control (demand-based extraction regulation)
• Uninterrupted continuous operation due to automatic, demand-oriented filter cleaning
• High and effective extraction capacity suitable for various welding processes (including laser welding)

Options / Configurator

• Extraction capacity (available variants): 2750 - 3900 m³/h (PE-M) — 2750 - 3900 m³/h (ePTFE) — 3800 - 5500 m³/h (PE-M) — 3800 - 5500 m³/h (ePTFE). Selected variant: 2750 - 3900 m³/h ePTFE
• Filter material options: KemTex® ePTFE membrane (selected) and PE-M membrane

Notes Price on request.

Technical specifications

• Model: ArcFil
• Brand: KEMPER
• Article no.: 20531
• Air inlet (mm): 355
• Air outlet (mm): 355
• Dust collection container volume (L): 70
• Dimensions (depth x width x height, mm): 962 x 962 x 2650
• Weight (kg): 552
• Filter stages: 1
• Filter area per element (m²): 15
• Number of filter elements: 3
• Total filter area (m²): 45
• Separation efficiency (≥ %): 99.9
• Sound pressure level (dB(A)): 72
• Compressed air supply (bar): 5-6
• Motor power (kW): 4
• Rated current (A): 7.5
• Max. fan capacity (m³/h): 5500
• Working pressure (Pa): 1550
• Minimum negative pressure (Pa): 2500
• Extraction capacity (m³/h): 2750-3900
