Cartridge filtration system - LaserFil - KEMPER - membrane / smoke
Cartridge filtration system - LaserFil - KEMPER - membrane / smoke
Add to favorites
Compare this product

fo_shop_gate_exact_title

Characteristics

Technology
cartridge, membrane
Designed for
smoke
Flow

Max.: 3,900 m³/h
(137,727.2 ft³/h)

Min.: 2,750 m³/h
(97,115.333 ft³/h)

Filtration size

Max.: 10 µm

Min.: 1 µm

Pressure

Max.: 2,500 Pa
(0.36 psi)

Min.: 1,550 Pa
(0.22 psi)

Description

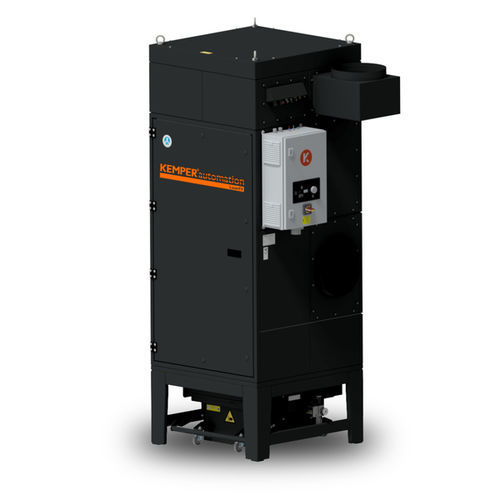

The LaserFil filter system of the Automation-Line is supplied ready to use and can be set up and put into operation in just a few seconds thanks to its compact design. The particularly large filter surface is optimally adapted to the laser cutting process and enables an effective extraction capacity. The unit is connected via various duct connection options directly to a laser cabin that covers the entire working area. This is essential to prevent the cutting fume from spreading into the production hall.
