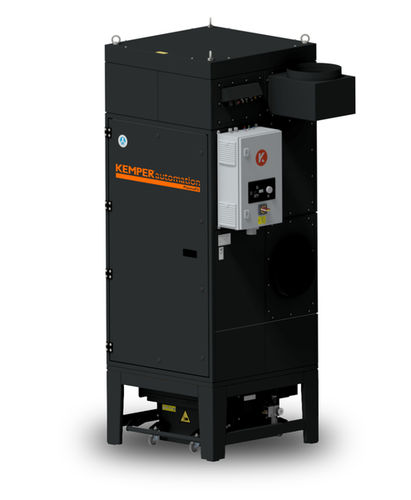

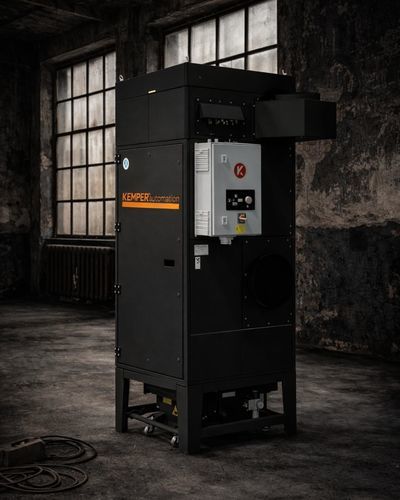

Dust extraction unit PlasmaFil

Overview
The PlasmaFil is a compact, plug-and-play filtration unit designed for clean-air extraction in plasma and flame cutting operations. Supplied ready to install, its compact footprint and large filter surface provide extended service life under high dust loads. The unit can be configured via different duct connection options to suit installation needs and delivers efficient smoke and dust extraction with high separation efficiency and controlled energy consumption.

Intended application

• Extraction for plasma cutting and flame/oxy-fuel cutting processes
• Medium levels of smoke and particulate emissions

Key features

• Ready-to-use, compact Automation-Line filter system for rapid installation and commissioning
• Large filter surface for extended service life at high dust loads
• Multiple pipe connection options for tailored installation
• Contamination-free dust removal via lever fixation of the dust collection container
• Optional automatic volume control for demand-based extraction and energy savings
• Automatic, demand-oriented filter cleaning for continuous operation

Configuration options

• Extraction capacity variants (examples): 2750–3900 m³/h (PE‑M), 2750–3900 m³/h (ePTFE, limited combinations), 3800–5500 m³/h (PE‑M / ePTFE depending on configuration)
• Fan types: radial fan (standard), radial fan direct driven (availability depends on configuration)
• Filter material: PE‑M membrane (standard), KemTex® ePTFE membrane (option)

Technical data
Dimensions:
Weight (kg): 559
Depth (mm): 962
Width (mm): 962
Height (mm): 2650

Connections:
Air inlet (mm): 355
Air outlet (mm): 355
Dust collection container volume (L): 70

Filter:
Filter stages: 1
Filter area (m² per element): 15
Number of filter elements: 4
Total filter area (m²): 60
Separation efficiency (% ≥): 99.9

Technology:
Motor power (kW): 4
Rated current (A): 7.5
Sound pressure level (dB(A)): 72
Compressed air supply (bar): 5–6

Performance:
Max. fan capacity (m³/h): 5500
Working pressure (Pa): 1550
Min. negative pressure (Pa): 2500
Extraction capacity (m³/h): 2750–3900

Characteristics / technical specifications

• Model: PlasmaFil
• Application: Extraction during plasma and flame cutting processes
• Compact plug-and-play system with large filter surface for long service intervals
• Configurable extraction capacity and filter material (PE‑M or ePTFE)
• Radial fan standard; other fan drive options depending on configuration
• Dust collection volume: 70 L with lever fixation for contamination-free removal
• Filter elements: 4 (15 m² each), total 60 m²; single filter stage
• Separation efficiency ≥ 99.9%
• Motor power: 4 kW; Rated current: 7.5 A
• Sound pressure level: 72 dB(A)
• Compressed air supply required: 5–6 bar
• Maximum fan capacity up to 5500 m³/h; typical extraction ranges 2750–3900 m³/h depending on configuration
