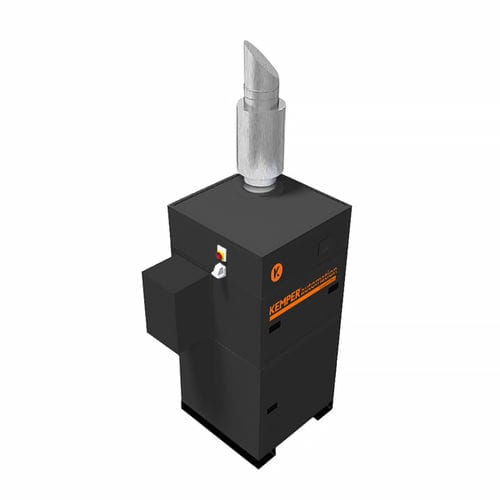

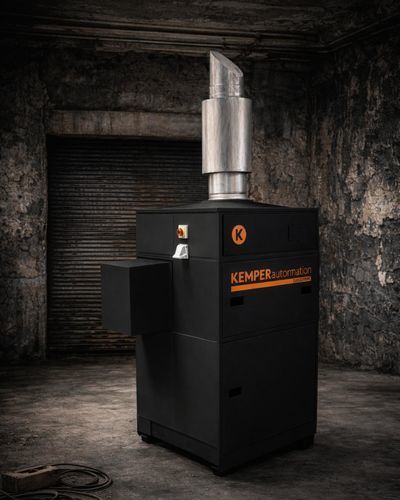

Cartridge filtration system LaserFil Pro

smoke

Overview
The LaserFil Pro is a plug-and-play fume extraction unit designed for laser cutting processes. It provides a large filter area, efficient filtration performance and, thanks to W3 certification (DIN EN ISO 21904), allows the filtered air to be returned directly to the production hall.

Applications

• High volumes of fumes and dust
• Welding shops and grinding stations
• Training centres and robotic welding lines
• Laser, plasma and oxy-fuel cutting systems
• Outdoor installation possible

Highlights
Plug-and-play. Compact. High filter area optimised for laser cutting. Direct connection to a laser cabin captures the whole working area and prevents spread of cutting fumes into the production hall. W3 certification enables energy-efficient recirculation of filtered air.

Advantages

• Contamination-free dust collection via compressed-air fixation of dust containers
• Uninterrupted continuous operation through automatic differential-pressure controlled filter cleaning
• Low noise emissions due to reduced sound pressure level
• Energy savings with optional automatic extraction regulation (demand-based suction control)
• User-friendly operation via touch display with diagnostic system
• Enhanced worker protection using KemTex® ePTFE filter cartridges with surface filtration
• Recirculation possible even when processing chrome-nickel steel thanks to W3 certification

Technical data
Dimensions
Weight in kg: 420
Dimensions (Depth) in mm: 962
Dimensions (Width) in mm: 962
Dimensions (Height) in mm: 2110

Connections
Air inlet in mm: 250
Air outlet in mm: 250
Dust container volume in L: 34

Filter
Filter stages: 1
Filter area in m² (per element): 10
Number of filter elements: 4
Total filter area in m²: 40
Separation efficiency in % ≥: 99.9

Performance
Max. volumetric flow in m³/h: 2500
Minimum vacuum in Pa: 2650
Suction capacity range in m³/h: 1250-2160
Max. fan capacity in m³/h: 2700
Operating pressure in Pa: 1950

Technology
Sound pressure level in dB(A): 65
Compressed air supply in bar: 5-6
Motor power in kW: 3
Rated current in A: 6.5

Characteristics / Specifications

• Model: LaserFil Pro
• Brand: KEMPER
• Suitable for: Laser cutting, plasma and oxy-fuel cutting systems, welding shops, grinding stations, training centres, robotic welding lines
• W3 certification (DIN EN ISO 21904) allows return of filtered air to the hall (recirculation)
• Plug-and-play delivery, compact design, rapid commissioning
• Large filter area with KemTex® ePTFE filter cartridges (surface filtration)
• Automatic differential-pressure controlled filter cleaning for continuous operation
• Compressed-air fixation of dust containers for contamination-free collection
• Low sound pressure level
• Optional automatic extraction regulation for energy savings
• Dimensions (H×W×D): 2110 × 962 × 962 mm
• Weight: 420 kg
• Motor power: 3 kW; Rated current: 6.5 A
