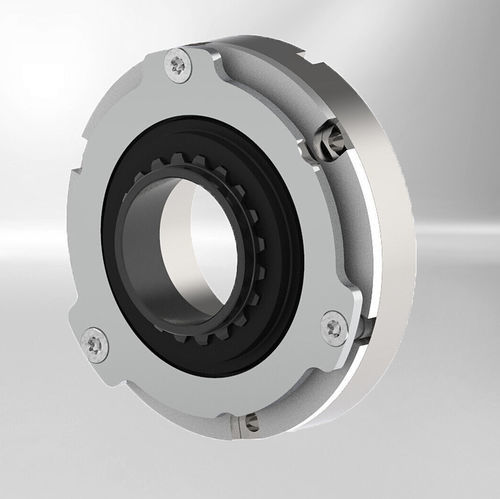

Disc brake unit Servo Slim Line

springelectromagneticfailsafe

Overview
The Servo Slim Line is an especially flat, fail-safe spring-applied brake for modern servo and robotic drives. It is designed for compact installation spaces, high braking energy, and long service life, making it particularly suitable for lightweight robotics and hollow-shaft drives.

Advantages

• Very flat and lightweight design
• High power density in a compact format
• Suitable for hollow-shaft motors
• Fail-safe function in case of power failure
• Low energy consumption thanks to PWM control
• Designed for high braking energy and long service life

Application Areas

• Robotics
• Automated guided vehicles, AGV / AMR
• Servo drives
• Lightweight robots
• Automated systems with safe holding function

Key Technical Data

• Sizes: 03, 04, 05, 07, 09, 10, 12
• Minimum torque: 0.27 Nm to 11 Nm
• Rated power: 5.8 W to 27.2 W
• Standard rated voltage: 12 VDC / 24 VDC
• Ambient temperature: -10°C to +100°C
• Rated speed: 2,500 to 6,000 rpm
• Outer diameter: 32 mm to 127 mm
• Overall length: 16 mm to 29.3 mm
