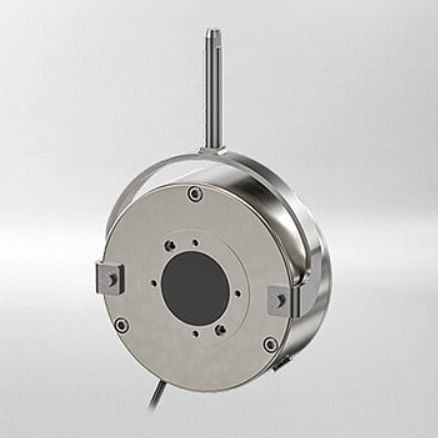

Disc brake INTORQ BFK470

springmanual releasefor wind turbine

Overview
The INTORQ BFK470 is a robust, electromagnetically released spring-applied brake for demanding industrial applications. Thanks to its high IP66 protection rating, it is especially suitable for harsh operating conditions with dust, moisture, or temperature fluctuations, for example in wind turbines and crane applications.

Advantages

• Robust single-disc brake for harsh environments
• High protection against dust and moisture
• Function monitoring via inductive proximity sensor
• Long service life thanks to optimized mechanical design
• High maximum torques possible
• Modular design with various versions
• Corrosion protection up to C4 / C5 optionally available

Application Areas

• Wind energy
• Crane systems and hoists
• Dusty or humid industrial environments
• Outdoor applications
• Machinery and plant engineering
• Applications with high requirements for protection rating and reliability

Key Technical Data

• Model: INTORQ BFK470
• Brake type: spring-applied single-disc brake
• Sizes: 7
• Braking torque range: 2 Nm to 370 Nm
• Voltage: 24 V, 103 V, 180 V, 205 V
• Temperature class: F (155°C)
• Protection rating: IP66
• Corrosion protection: C3, optional C4 / C5
