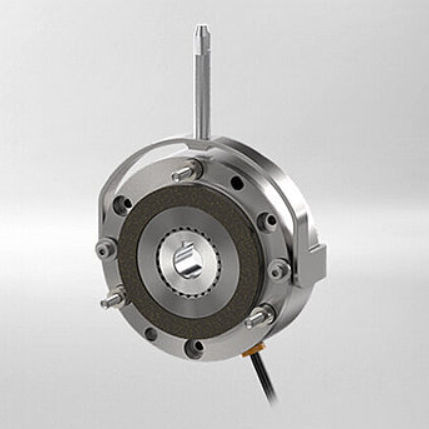

Disc brake unit INTORQ BFK457

frictionspring activatedspring

Product Overview
The INTORQ BFK457 is a spring-applied brake for service and holding functions with an emergency stop function. It is available in Basic, Compact, and Double versions and features a fixed air gap as well as integrated fastening screws for fast, low-maintenance installation. The compact one-piece design saves installation space and is designed for a 100% duty cycle. CE marking; CSA and UL certificates are available.

Advantages

• Compact one-piece design saves installation space
• Fixed air gap for fast, low-maintenance installation
• Integrated fastening screws in the Compact version
• Designed for 100% duty cycle
• Optionally available with manual release, flange, friction plate, and noise damping
• CE-marked, CSA and UL certificates available

Application Areas

• Automated guided vehicles (AGVs) and intralogistics
• Industrial trucks and counterbalance forklifts
• Wind turbines and renewable energy applications
• Conveyor and handling systems
• Mechanical engineering and industrial automation
• High-speed doors, cranes, and winches

Key Technical Data

• Models: Basic, Compact, Double
• Sizes: 6
• Braking torque: approx. 4–125 Nm, Double up to 2 × 125 Nm
• Voltage: 24 V to 205 V
• Insulation class: F (155°C)
• Protection rating: IP00 to IP55, depending on version
• Operating mode: 100% duty cycle
