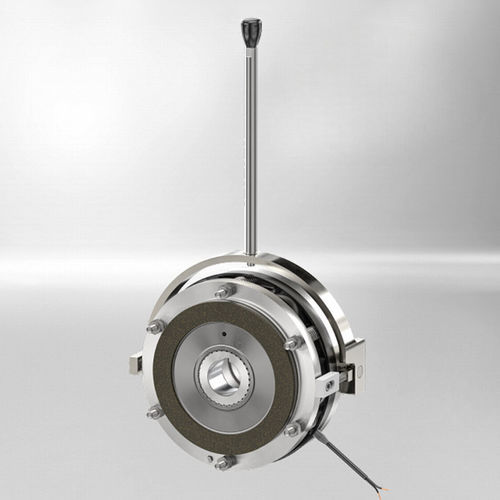

Disc brake unit INTORQ BFK468springmanual releasefor hoists
Add to favorites
Compare this product
Characteristics
- Type
- disc
- Operation
- spring, manual release
- Other characteristics
- low-noise, for hoists, for motors, corrosion-resistant, DC voltage, compact
- Torque
Max.: 2,400 Nm
(1,770.149158 ft.lb)Min.: 100 Nm
(73.756215 ft.lb)- Rotational speed
1,500 rpm, 3,000 rpm, 3,700 rpm, 4,400 rpm
(9,424.778 rad.min-1, 18,849.5559 rad.min-1, 23,247.7856 rad.min-1, 27,646.0154 rad.min-1)- Power
Max.: 920 W
Min.: 85 W
Description
Overview
The INTORQ BFK468 is a high-performance, electromagnetically released spring-applied brake with multi-coil technology. It is designed for demanding drives with high speeds and large braking torques, making it especially suitable for applications that require short switching times and high braking performance despite limited installation space.
Advantages
Application Areas
Key Technical Data
The INTORQ BFK468 is a high-performance, electromagnetically released spring-applied brake with multi-coil technology. It is designed for demanding drives with high speeds and large braking torques, making it especially suitable for applications that require short switching times and high braking performance despite limited installation space.
Advantages
- Multi-coil system for high braking performance
- Suitable as a holding or service brake
- Fast response due to low brake inductance
- Large working air gap for longer maintenance intervals
- Braking torque fixed or reducible depending on version
- Optionally available with manual release, noise damping, and wear monitoring
- Various corrosion protection and sealing versions possible
Application Areas
- Geared motors
- Hoists and crane systems
- High-performance hoisting equipment
- Industrial drives with high torques
- Applications with limited installation space and high braking performance
Key Technical Data
- Model: INTORQ BFK468
- Brake type: multi-pole spring-applied brake / multi-coil brake
- Braking torque range: 100 Nm to 2,400 Nm
- DC voltages: 205/103 V, 360/180 V
- Insulation class: F (155°C)
- Monitoring: release or wear monitoring via microswitch possible
- Options: manual release, noise-damped version, flange, rectifier, corrosion protection, sealing
