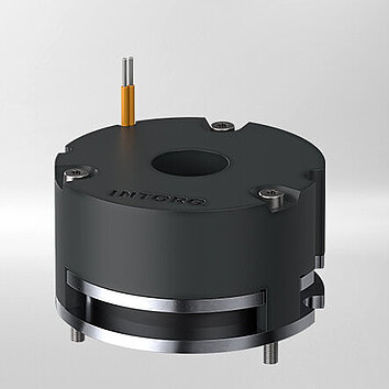

Friction brake unit INTORQ BFK551discspringspring activated
Add to favorites
Compare this product
Characteristics
- Type
- friction, disc
- Operation
- spring, spring activated, manual release
- Other characteristics
- compact, for vehicles, for conveyor, emergency, for motors, for servo motors, DC voltage
- Torque
Min.: 0.24 Nm
(0.177015 ft.lb)Max.: 4 Nm
(2.950249 ft.lb)- Power
Min.: 5.2 W
(0.01 hp)Max.: 12.4 W
(0.02 hp)
Description
Overview
The INTORQ BFK551 is a compact, electromagnetically released spring-applied brake for small motors and drive systems. It can be used as a holding brake or dynamic brake with emergency stop function and is easy to integrate into new or existing drives thanks to its pre-assembled design.
Advantages
Application Areas
Key Technical Data
The INTORQ BFK551 is a compact, electromagnetically released spring-applied brake for small motors and drive systems. It can be used as a holding brake or dynamic brake with emergency stop function and is easy to integrate into new or existing drives thanks to its pre-assembled design.
Advantages
- Compact design for small drives
- Suitable as a holding brake or dynamic brake
- Emergency stop function possible
- Easy mounting on the motor shaft
- Factory-set air gap
- Fully assembled with integrated Torx® fastening screws
- UL-listed insulation system
- Optional manual release for sizes 03 to 05
Application Areas
- Small motors and drive solutions
- Robotics
- Automated guided vehicles, AGV / AMR
- Conveyor technology
- Intralogistics
- Geared motors
Key Technical Data
- Model: INTORQ BFK551
- Brake type: spring-applied brake with holding, dynamic, and emergency stop function
- Sizes: 01 to 05
- Braking torque: 0.24 Nm to 4 Nm
- Supply voltage: 24 VDC
- Power: 5.2 W to 12.4 W
- Height: 31.1 mm to 34.8 mm
