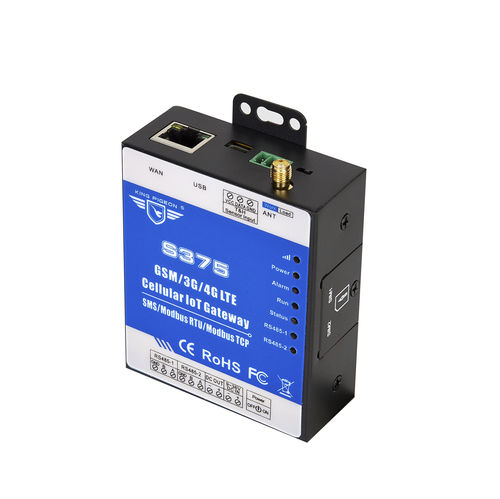

Modbus gateway S375
communicationindustrialIoT

Modbus gateway
Modbus gateway
Modbus gateway
Modbus gateway
Add to favorites
Compare this product


Characteristics

Type
communication, industrial, IoT, security, telemetry
Network
wireless, EtherNet/IP, Modbus RTU, Ethernet TCP/IP, 3G, Modbus/TCP, GSM, GPRS, RS-485, RS-232, LAN, MQTT, Modbus TCP/IP, WAN, BMS, cellular, Modbus
Other characteristics
for sensors, DIN rail, compact, 2 port, PLC, slave, for substation automation, for smart grids, wall-mounted, for electric power meter, intercom

Description

Cellular Modbus MQTT IoT Gateway (Ethernet RJ45,1TH,USB,2 RS485,320 Extend I/O tags) The Ethernet Cellular IoT Modbus Gateway provides 1 ambient sensor input for monitoring onsite temperature and humidity, 1 Ethernet RJ45 port for connect internet WAN or LAN, and 2 RS485 serial port, supports 320 extend I/O tags via Modbus RTU protocol. It can monitoring and operates the RS485 ports and extend I/O tags by SMS, APP, Web Server, internet.Widely used in BTS,unmanned rooms,highway bridges,natural disaster warning monitoring, pump control, sewage treatment, meteorological environment, oilfield pipelines, smart farming, smart agriculture and other occasions. Supports SMS,GPRS,3G, 4G Lte Cellular Networks. Compatible Modbus TCP and MQTT IoT Protocols and can intergrate to the KPIIOT IoT Cloud Platform and OPC, SCADA and MES systems to build an industiral IoT Solution. The Ethernet Cellular IoT Modbus Gateway is an industrial class, high reliability, high stability, and programmable Remote Terminal Unit. It embedded 32-Bit High Performance Microprocessor MCU, inbuilt industrial Cellular module. It provides 1 ambient sensor input for monitoring onsite temperature and humidity, 1 Ethernet RJ45 port for connect internet WAN or LAN, dual sim card slot and 2 RS485 serial port, supports 320 extend I/O tags via Modbus RTU protocol. It can monitoring and operates the RS485 ports and extend I/O tags by SMS, APP, Web Server, internet, timers and programmed inter-lock events automatically.
