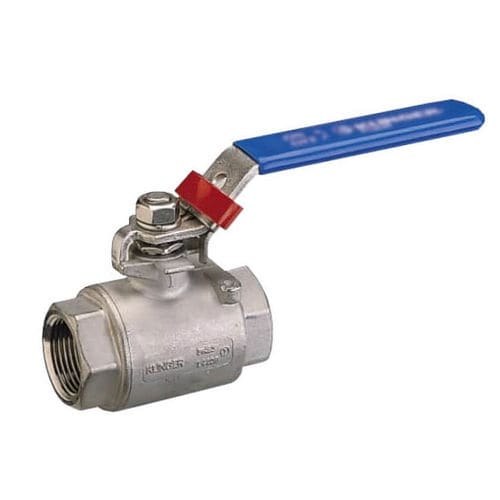

Floating ball valve KH 2T M levercontrolchemical
Add to favorites
Compare this product
Characteristics
- Type
- floating ball
- Operation
- lever
- Function
- control
- Applications
- chemical, flange
- Other characteristics
- ISO, DIN, locking, ATEX, fire-safe
- DN
Min.: 0.25 in
Max.: 3 in
- Pressure
40 bar, 63 bar
(580.2 psi, 913.7 psi)- Temperature
Min.: -10 °C
(14 °F)Max.: 225 °C
(437 °F)
Description
RK-Proball - one-, two- or three-piece ball valves
An interesting alternative!
The RK-Proball series offers special interesting cost effectiveness. Depending on the design the ball valves are suitable in air pressure systems, light chemical industry, pulp and paper industry for alcalines, acids, solvents and other chemical agents. RK-Proball ball valve NC-types are certified acc. to German clean air act VDI 2440! Flexible usability - a "Pro" for your plant.
Product Advantages
Special interesting cost effectiveness
Flexible usability
Certified acc. to German clean air act VDI 2440
Top flange DIN EN ISO 5211
Safety spring locking device (optional)
Best suited for automation
Accessories
Safety spring locking device
Locking device for lever
Stem extension
Certificates and Approvals
Certified acc. to German clean air act VDI 2440
Fire-Safe acc. to API 607 (optional)
ATEX 2014/34/EU
