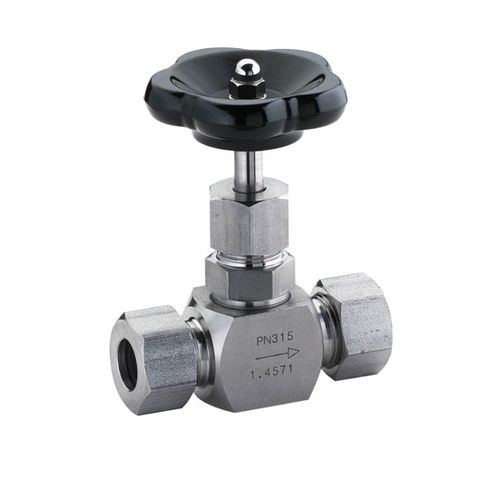

Needle valve NVK-HP
manualcontrolthreaded

needle valve
needle valve
Add to favorites
Compare this product


Characteristics

Type
needle
Operation
manual
Function
control
Body
threaded, female, male, stainless steel, graphite
Other characteristics
compact, DIN, high-pressure
DN

Min.: 4 mm
(0.157 in)

Max.: 10 mm
(0.394 in)

Pressure

315 bar
(4,568.7 psi)

Temperature

Min.: 0 °C
(32 °F)

Max.: 500 °C
(932 °F)

Description

NVK-HP High-pressure needle valve with stuffing box. Features DN 4 - DN 10 metal tight conical globe metal resealing FTF dimensions acc. to producers standard with clamping ring connection RK-NEEDLE VALVES Miniplant valve for generally applications. With conventional stuffing box or bellow sealed and safety stuffing box a good solution with clamping ring connection for your miniplant or measurement application. Product Advantages Compact design Compatible with current clamping ring connection manufacturers One-piece solid body TA-Luft design with bellow and safety stuffing box Accessories Stem extension Special Designs Special materials like Titan, Hastelloy etc. Soft seated or metal seated Stuffing box made of Graphite or PTFE With female threaded ends With male threaded ends Male/female variation Light series acc. to DIN 3861 NPT-thread
