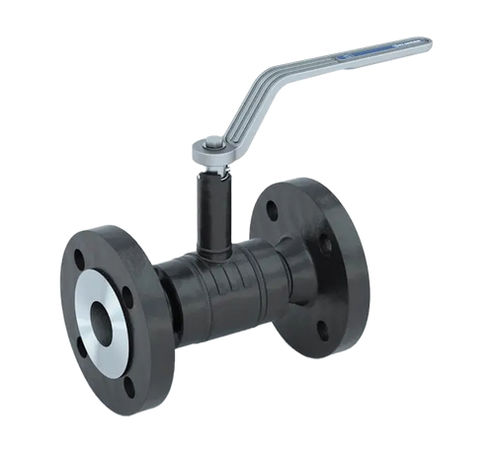

Ball valve Monoball KHOmanualflangethreaded
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- manual
- Body
- flange, threaded, welded
- Applications
- heating, air conditioning
- Material
- stainless steel, cast steel
- Other characteristics
- ISO
- DN
Max.: 250 mm
(9.843 in)Min.: 15 mm
(0.591 in)- Pressure
Max.: 40 bar
(580.2 psi)Min.: 16 bar
(232.1 psi)- Temperature
Max.: 200 °C
(392 °F)Min.: -5 °C
(23 °F)
Description
The new KLINGER ball valve Monoball KHO is fully welded and generally used in the sector district heating, heating- and air conditioning and plant construction. The product is durable, functional, maintenance-free and user-friendly.
Maintenance-free
Multi-layer, durable operating stem seal
Certified according to EN 488:2019 and EHP003 certification
Meets the requirements of the AGFW worksheet FW 401 – Part 5
Floating design
Elastically pre-stressed sealing elements with stainless steel sinus springs
Long heat-insulating shaft
Switch shaft made of stainless steel
High degree of resilience against pipework forces
Supports pressurization on both sides
Special types ball valve
Monoball KHO
Pre-insulated design for plastic casing pipe systems
Pre-insulated drainage and vent port with stainless steel for the plastic casing pipe systems
Top flange in accordance with EN ISO 5211 for automation
Full solution with venting and bleeding, insulation and leak warning wires
