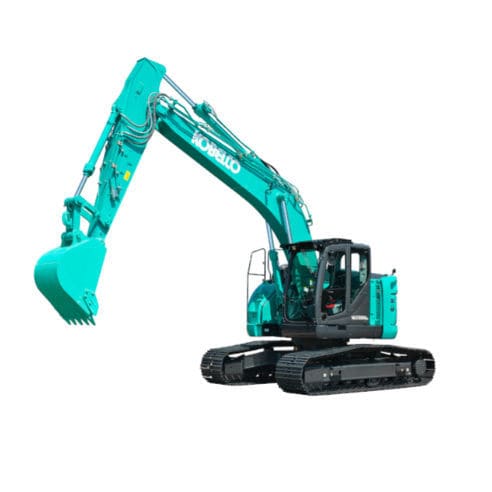

Large excavator SK230SRLC-7crawlerTier 4 - finaldiesel
Add to favorites
Compare this product
Characteristics
- Size
- large
- Locomotion
- crawler
- Engine type
- diesel, Tier 4 - final
- Bucket capacity
Max.: 930 l
(245.68 gal)Min.: 510 l
(134.728 gal)- Operating weight
Max.: 26,300 kg
(57,981.6 lb)Min.: 24,000 kg
(52,910.9 lb)- Engine power
127 kW
(172.67 hp)- Travel speed
Max.: 5.8 km/h
(3.6 mph)Min.: 3.5 km/h
(2.2 mph)- Tank capacity
330 l
(87.177 gal)- Digging depth
2,870 mm
(112.992 in)
Description
Product
Summary
Engine
Digging force
Hydraulic system
Travel force / Travel system
Special attachments
Technical specifications
- Model: SK230SRLC-7
- Series: SR Series
Summary
- Operating weight: 24,000 kg – 27,000 kg
- Engine rated power: 127 kW / 2,000 min-1 (ISO 14396)
- Bucket capacity: 0.51 – 0.93 m³
Engine
- Model: YANMAR 4TN107FTT
- Type: Direct injection, water-cooled, 4‑cycle diesel with turbocharger and intercooler, EU Stage V compliant
- Fuel tank: 330 L
- Displacement: 4.567 L
- Rated power output: 127 kW / 2,000 min-1 (ISO 14396)
Digging force
- Bucket digging force (standard): 120 / 132*
- Arm crowding force (standard): 88 / 96.8*
- Standard arm length: 2.87 m
- Power boost engaged: values include power boost where specified
Hydraulic system
- Type: Axial piston pumps + extra gear pump + pilot gear pump
- Max. discharge flow: 2 × 220 L/min, 1 × 40.6 L/min, 1 × 20 L/min
- Relief valve setting: 34.3 MPa (boom, arm and bucket)
- Hydraulic oil tank / system: 114 L (tank oil level) / 230 L (system)
- Power Boost pressure: 37.8 MPa
Travel force / Travel system
- Travel motors: 2 × axial-piston, two-step motors
- Track shoes: 49 per side
- Travel speed: 5.8 / 3.5 km/h
- Swing speed: 12.6 min-1
- Drawbar pulling force: 227 kN (SAE)
- Gradeability: 70% (35°)
Special attachments
- 2‑PC boom configuration — Operating weight: 25,200 kg – 27,500 kg
- 2‑PC boom — Engine rated power: 124 kW / 2,000 min-1 (ISO 14396)
Technical specifications
- Operating weight: 24,000 kg – 27,000 kg
- Engine model: YANMAR 4TN107FTT; Displacement: 4.567 L; Fuel tank: 330 L
- Engine rated power: 127 kW / 2,000 min-1 (ISO 14396)
- Bucket capacity: 0.51 – 0.93 m³
- Hydraulic system: Axial piston pumps + extra gear pump + pilot gear pump; Max discharge flow: 2×220 L/min, 1×40.6 L/min, 1×20 L/min
- Relief valve setting (boom/arm/bucket): 34.3 MPa
- Hydraulic oil tank / system: 114 L / 230 L
- Power Boost: 37.8 MPa
- Bucket digging force (standard): 120 / 132*
- Arm crowding force (standard): 88 / 96.8*
- Standard arm length: 2.87 m
- Travel speed: 5.8 / 3.5 km/h; Swing speed: 12.6 min-1
- Drawbar pulling force: 227 kN (SAE); Gradeability: 70% (35°)
- Special attachment (2‑PC boom) operating weight: 25,200 kg – 27,500 kg
