Medium excavator SK240SN-11E
crawlerdiesel

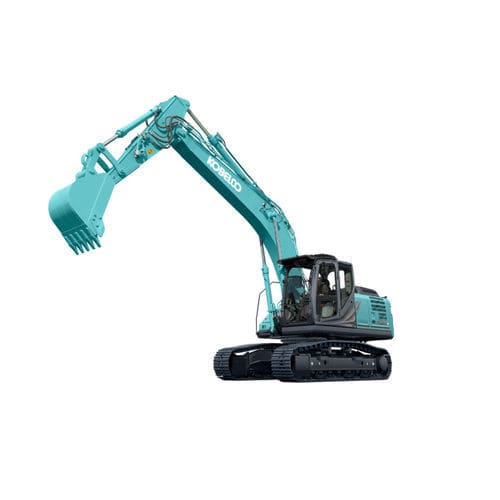

Medium excavator - SK240SN-11E - Kobelco Construction Machinery Europe B.V. - crawler / diesel
Medium excavator - SK240SN-11E - Kobelco Construction Machinery Europe B.V. - crawler / diesel
Medium excavator - SK240SN-11E - Kobelco Construction Machinery Europe B.V. - crawler / diesel - image - 2
Add to favorites
Compare this product

Characteristics

Size
medium
Locomotion
crawler
Engine type
diesel
Bucket capacity

Min.: 700 l
(184.92 gal)

Max.: 800 l
(211.338 gal)

Operating weight

Min.: 23,500 kg
(51,808.6 lb)

Max.: 24,500 kg
(54,013.3 lb)

Engine power

124 kW
(168.59 hp)

Travel speed

3.6 km/h, 6 km/h
(2.2 mph, 3.7 mph)

Tank capacity

Min.: 0 l
(0 gal)

Max.: 321 l
(84.799 gal)

Digging depth

2,400 mm, 2,940 mm
(94.488 in, 115.748 in)

Description

Model
SK240SN-11E — Conventional model.

Key specifications (summary)
  • Operating weight: 23,600 - 24,600 kg
  • Engine rated power: 127 kW / 2,000 min-1 (ISO 14396)
  • Bucket capacity: 0.70 - 0.80 m3


Engine
  • Model: YANMAR 4TN107FTT
  • Type: Four-cycle, water-cooled, direct injection diesel, turbocharged; EU Stage V exhaust emission regulation
  • Displacement: 4.567 L
  • Fuel tank capacity: 321 L
  • Rated power output: 127 kW / 2,000 min-1 (ISO 14396)


Digging force
  • Bucket digging force (standard): 143 / 157*
  • Arm crowding force (short): 121 / 133*
  • Arm crowding force (standard): 102 / 112*
  • Arm lengths: Short 2.40 m; Standard 2.94 m


Hydraulic system
  • Type: Two variable-displacement axial piston pumps + extra gear pump + pilot gear pump
  • Max. discharge flow: 2 × 220 L/min, 1 × 40.6 L/min, 1 × 20 L/min
  • Relief valve setting: 34.3 MPa (boom, arm and bucket)
  • Hydraulic oil tank / system: 140 L / 244 L
  • Power Boost pressure: 37.8 MPa


Travel force / Undercarriage / Mobility
  • Travel motors: 2 x axial-piston, two-step
  • Travel shoes: 47 per side
  • Travel speed: 6.0 / 3.6 km/h
  • Drawbar pulling force: 228 kN (SAE)
  • Gradeability: 70% (35°)


Special attachments
  • 2 PC Boom — Operating weight: 24,600 kg
  • 2 PC Boom — Engine Rated Power: 124 kW (169 hp) / 2,000 min-1 (ISO 14396)
  • 2 PC Boom — Bucket Capacity: 0.70 - 0.80 m3


Technical specifications
  • Model designation: SK240SN-11E
  • Operating weight range: 23,600 - 24,600 kg
  • Engine model: YANMAR 4TN107FTT
  • Engine rated power: 127 kW / 2,000 min-1 (ISO 14396)
  • Engine displacement: 4.567 L
  • Exhaust emission regulation: EU Stage V
  • Fuel tank capacity: 321 L
  • Bucket capacity: 0.70 - 0.80 m3
  • Bucket digging force (standard): 143 / 157*
  • Arm crowding force (short / standard): 121 / 133* ; 102 / 112*
  • Arm lengths: Short 2.40 m ; Standard 2.94 m
  • Hydraulic system type: Two variable-displacement axial piston pumps + extra gear pump + pilot gear pump
  • Max. hydraulic discharge flow: 2 × 220 L/min, 1 × 40.6 L/min, 1 × 20 L/min
  • Hydraulic relief valve setting: 34.3 MPa (boom, arm and bucket)
  • Hydraulic oil tank / system capacity: 140 L / 244 L
  • Power Boost pressure: 37.8 MPa
  • Travel motors: 2 x axial-piston, two-step
  • Travel speed: 6.0 / 3.6 km/h
  • Travel shoes: 47 per side
  • Drawbar pulling force: 228 kN (SAE)
  • Gradeability: 70 % (35°)
