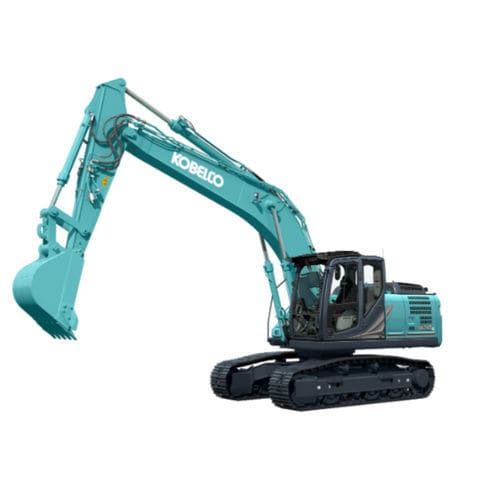

Medium excavator SK240SN-11E

crawlerdiesel

Product

• SK240SN-11E
• Conventional models

Product specifications (summary)

• Operating weight: 23,600 - 24,600 kg
• Engine rated power: 127 kW / 2,000 min-1 (ISO 14396)
• Bucket capacity: 0.70 - 0.80 m³

Engine
Model: YANMAR 4TN107FTT
Type: Four-cycle, water-cooled, direct injection diesel engine, turbo charged, EU Stage V exhaust emission regulation
Fuel tank: 321 L
Displacement: 4.567 L
Rated power output: 127 kW / 2,000 min-1 (ISO 14396)

Digging force
Bucket digging force (Standard): 143 / 157*
Arm crowding force (Short): 121 / 133*
Arm crowding force (Standard): 102 / 112*
Short arm: 2.40 m
Standard arm: 2.94 m

Hydraulic system
Type: Two variable displacement axial piston pumps + extra gear pump + pilot gear pump
Max. discharge flow: 2 × 220 L/min, 1 × 40.6 L/min, 1 × 20 L/min
Relief Valve Setting: 34.3 MPa (Boom, arm and bucket)
Hydraulic Oil tank: 140 L tank oil level, 244 L hydraulic system
Power Boost: 37.8 MPa

Travel Force / Drive
Travel motors: 2 x axial-piston, two-step motors
Travel shoes: 47 each side
Travel speed: 6.0 / 3.6 km/h
Drawbar pulling force: 228 kN (SAE)
Gradeability: 70 % {35°}

Special attachments
2 PC Boom - Operating weight: 24,600 kg
2 PC Boom - Engine Rated Power: 124 kW (169 hp) / 2,000 min-1 (ISO 14396)
2 PC Boom - Bucket Capacity: 0.70 - 0.80 m³

Caractéristiques / Spécifications techniques

• Product name: SK240SN-11E
• Model family: Conventional models
• Operating weight: 23,600 - 24,600 kg
• Engine make & model: YANMAR 4TN107FTT
• Engine type: Four-cycle, water-cooled, direct injection, turbo charged, EU Stage V
• Engine rated power: 127 kW / 2,000 min-1 (ISO 14396)
• Displacement: 4.567 L
• Fuel tank capacity: 321 L
• Bucket capacity: 0.70 - 0.80 m³
• Bucket digging force (Standard): 143 / 157*
• Arm crowding force (Short): 121 / 133*
• Arm crowding force (Standard): 102 / 112*
• Arm lengths: Short 2.40 m, Standard 2.94 m
• Hydraulic system type: Two variable displacement axial piston pumps + extra gear pump + pilot gear pump
• Hydraulic max. discharge flow: 2 × 220 L/min, 1 × 40.6 L/min, 1 × 20 L/min
• Hydraulic relief valve setting: 34.3 MPa (Boom, arm and bucket)
• Hydraulic oil tank / system: 140 L tank oil level, 244 L hydraulic system
• Power boost pressure: 37.8 MPa
• Travel motors: 2 x axial-piston, two-step motors
• Travel shoes: 47 each side
• Travel speed: 6.0 / 3.6 km/h
• Drawbar pulling force: 228 kN (SAE)
• Gradeability: 70 % {35°}
• Special attachment (2 PC Boom) operating weight: 24,600 kg
• Special attachment (2 PC Boom) engine rated power: 124 kW / 2,000 min-1 (ISO 14396)
• Special attachment (2 PC Boom) bucket capacity: 0.70 - 0.80 m³
