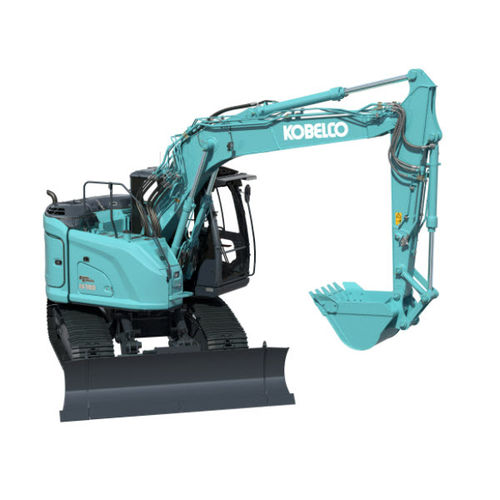

Medium excavator ED160-7

crawlerdiesel

Product overview
The ED160-7 Blade Runner (SR Series) is a multi-purpose crawler excavator with integrated dozer capabilities, intended for operations in confined sites and varied terrain.
Operating weight: 16,800–18,000 kg. Bucket capacity: 0.24–0.7 m3.

Engine
Model: ISUZU MOTORS LIMITED 4JJ1XDDV A01
Type: Four-cycle, liquid-cooled, direct-injection diesel, turbocharged (meets EU Stage V)
Fuel tank capacity: 190 L. Displacement: 2.999 L. Rated power: 86 kW (117 hp) / 2,200 min-1 (ISO14396).

Digging force

• Bucket digging force (standard): 105.4 kN
• Arm crowding force (standard): 64 kN
• Arm crowding force (long): 58 kN
• Standard arm length: 2.38 m
• Long arm length: 2.84 m

Hydraulic system
Type: Two variable-displacement piston pumps plus an extra gear pump.
Max. discharge flow: 2 × 142 L/min + 1 × 66 L/min (auxiliary). Relief valve setting: 34.3 MPa (boom, arm, bucket).
Hydraulic tank / system volumes: 89.9 L (tank oil level), 190 L (hydraulic system).

Travel & undercarriage

• Travel motors: Variable-displacement piston, two-speed
• Travel shoes: 40 per side
• Travel speed: 2.4 / 4.8 km/h
• Drawbar pulling force: 195 kN (SAE)
• Gradeability: 70% (35°)

Highlights

• Multi-purpose configuration combining excavator and dozer functions for small contractors and family-run companies.
• Curved-track undercarriage enhances stability on uneven ground and supports forestry and rough-terrain tasks.
• Compact footprint and tight turning capability for work close to buildings and in confined areas.

Technical specifications

• Operating weight: 16,800–18,000 kg
• Engine model: ISUZU MOTORS LIMITED 4JJ1XDDV A01
• Displacement: 2.999 L
• Fuel tank capacity: 190 L
• Rated power: 86 kW (117 hp) / 2,200 min-1 (ISO14396)
• Bucket capacity: 0.24–0.7 m3
• Bucket digging force (standard): 105.4 kN
• Arm crowding force (standard/long): 64 kN / 58 kN
• Arm lengths (standard / long): 2.38 m / 2.84 m
• Hydraulic pumps: 2 × variable-displacement piston + 1 × gear pump
• Hydraulic max. discharge flow: 2 × 142 L/min + 1 × 66 L/min
• Relief valve setting: 34.3 MPa (boom, arm, bucket)
• Hydraulic tank / system: 89.9 L / 190 L
• Travel motors: Variable-displacement piston, two-speed
• Travel shoes: 40 per side
• Travel speed: 2.4 / 4.8 km/h
• Drawbar pulling force: 195 kN (SAE)
• Gradeability: 70% (35°)
