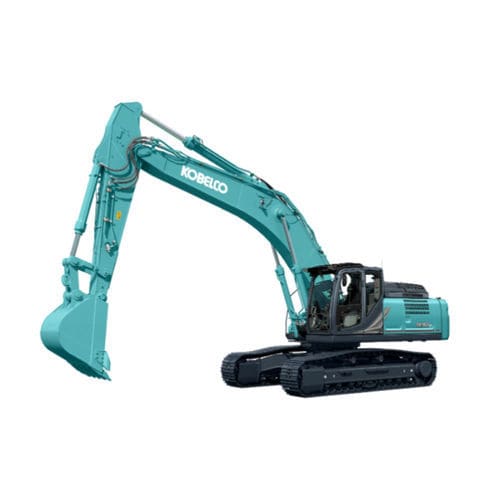

Medium excavator SK350(N)LC-11E

crawlerdiesel

Product
SK350(N)LC-11E — conventional models.

Product specifications SK350(N)LC-11E
Operating weight: SK350LC-11E: 37,000–38,600 kg; SK350NLC-11E: 36,900–37,700 kg. Engine rated power: 210 kW / 1,900 min-1 (ISO 14396). Bucket capacity: 1.20–1.80 m3.

Engine

• Model: ISUZU 6HK1
• Type: Four-cycle, water-cooled, direct injection diesel engine, turbocharged, EU Stage V exhaust emission regulation
• Fuel tank capacity: 503 L
• Displacement: 7.790 L
• Rated power output: 210 kW / 1,900 min-1 (ISO 14396)

Digging force

• Bucket digging force (Short): 221 / 243* kN
• Bucket digging force (Standard): 222 / 244* kN
• Bucket digging force (Long): 220 / 242* kN
• Arm crowding force (Short): 205 / 225* kN
• Arm crowding force (Standard): 163 / 180* kN
• Arm crowding force (Long): 140 / 154* kN
• Arm lengths: Short 2.60 m, Standard 3.30 m, Long 4.15 m
• Power boost engaged: unit = kN (values after "/" indicate with power boost engaged)

Hydraulic system

• Type: Two variable displacement axial piston pumps + extra gear pump + pilot gear pump
• Max. discharge flow: 2 × 294 L/min, 1 × 44.3 L/min, 1 × 19 L/min
• Relief valve setting: 34.3 MPa (boom, arm and bucket)
• Hydraulic oil tank: 245 L (tank oil level), 410 L (hydraulic system)
• Power boost pressure: 37.8 MPa

Travel force

• Travel motors: 2 × axial-piston, two-step motors
• Travel shoes: 48 each side
• Travel speed: 5.6 / 3.3 km/h
• Drawbar pulling force: 321 kN (SAE)
• Gradeability: 70 % (35°)

Special attachments - 2 PC Boom
Operating weight: 37,700–39,500 kg. Engine rated power: 210 kW / 1,900 min-1 (ISO 14396). Bucket capacity: 1.20–1.80 m3.

Technical specifications

• Model name: SK350(N)LC-11E
• Operating weight (SK350LC-11E): 37,000–38,600 kg
• Operating weight (SK350NLC-11E): 36,900–37,700 kg
• Engine: ISUZU 6HK1 — Four-cycle, water-cooled, direct injection, turbocharged, EU Stage V
• Displacement: 7.790 L
• Fuel tank capacity: 503 L
• Rated power: 210 kW / 1,900 min-1 (ISO 14396)
• Bucket capacity: 1.20–1.80 m3
• Hydraulic pumps: Two variable displacement axial piston pumps + extra gear pump + pilot gear pump
• Max hydraulic flow: 2 × 294 L/min, 1 × 44.3 L/min, 1 × 19 L/min
• Relief valve setting: 34.3 MPa
• Hydraulic oil tank: 245 L (tank oil level), 410 L (hydraulic system)
• Power boost pressure: 37.8 MPa
• Bucket digging force (Short / with boost): 221 / 243* kN
• Bucket digging force (Standard / with boost): 222 / 244* kN
• Bucket digging force (Long / with boost): 220 / 242* kN
• Arm crowding forces (Short / Standard / Long): 205 / 163 / 140 kN (without boost) and 225 / 180 / 154 kN (with boost)
• Arm lengths: Short 2.60 m, Standard 3.30 m, Long 4.15 m
• Travel speed: 5.6 / 3.3 km/h
• Drawbar pulling force: 321 kN (SAE)
• Gradeability: 70 % (35°)
• Travel shoes: 48 each side
• Special attachment: 2 PC Boom — operating weight 37,700–39,500 kg
