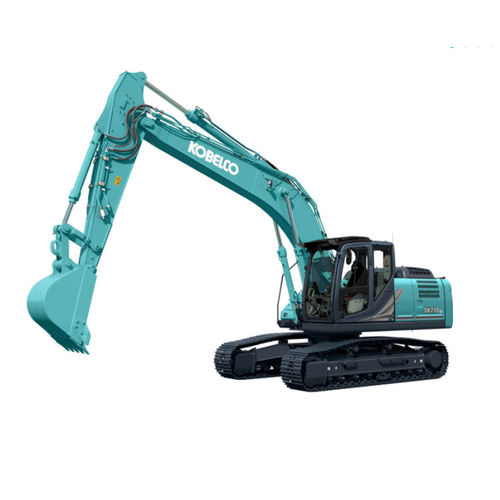

Medium excavator SK210(SN)LC-11

crawlerdiesel

ENGINE Model: - J05EVA-KSDA Type: - Direct injection, water-cooled, 4-cycle diesel engine with turbocharger, intercooler Displacement: - 5.123 L Rated power output: -2,000 min-1 (ISO14396) DIGGING FORCE Bucket digging force (Standard): - 143 / 157* Arm crowding force (Short): - 121 / 133* Arm crowding force (Standard): - 102 / 112* Arm crowding force (Long): - 91.8 / 101* Power boost engaged: - UNIT = kN * Power Boost engaged HYDRAULIC SYSTEM Type: - Two variable displacement pumps + extra pump Max. discharge flow: - 2 x 220 L/min, 1 × 40.6 L /min Relief Valve Setting: - 34.3 MPa (Boom, arm and bucket) Hydraulic Oil tank: - 140 L tank oil level, 244 L hydraulic system Power Boost: - 37.8 MPa TRAVEL FORCE Travel motors: - 2x axial-piston motor, two-step motors Swing speed: - 12.7 min-1 Drawbar pulling force: - 228 kN (SAE) Gradeability: - 70 % {35°}
