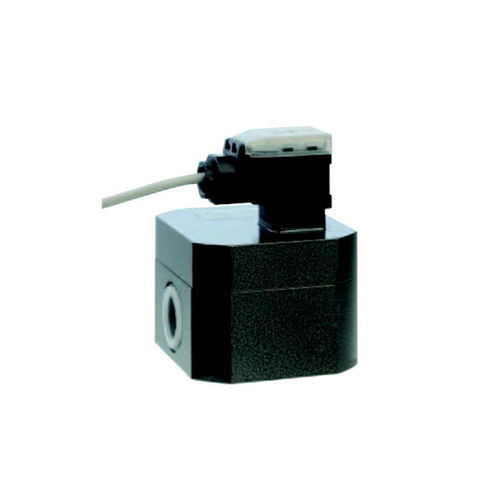

Gear flow meter KZA

for liquidsthreadedstainless steel

The KOBOLD gear wheel flow meter model KZA for viscous liquids is a low cost flow meter. The movement system consists of a gear set, which is propelled by the flow. The instrument movement bearing is designed for the types KZA-1810 and KZA-1865, as radial and axial gliding bearing. The type KZA-1816 has a bail bearing. The pick-up is separated from the measuring chamber and it registrates contactlessly the gear resolution through the housing wall. Easy maintenance, small pressure loss, small weight and low noise level are the outstanding features of this flow meter. Areas of Application •For ail viscose, non abrasive liquids like: Petroleum, grease, pastes etc. •Mixing and batching •Hydraulics Materials Housing: aluminium, anodised AIMgSiF30 (KZA 1810/1865) aluminium AIMgSiF30 (KZA-1804/1816/1899) Gears: stainless steel 1.4462 (KZA-1804/1810) steel 1.7139 (KZA-1816/1865/1899) Bearing: plastic gliding bearing (KZA-1810) multi-layer gliding bearing (KZA-1865) bail bearing (KZA-1804/1816/1899) Seals: FPM
