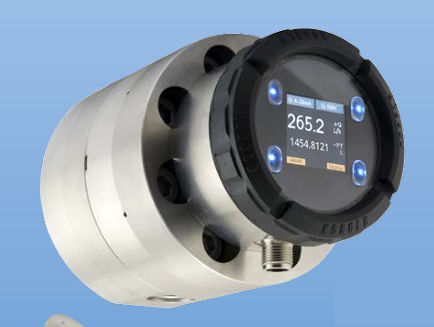

Oval gear flow meter DON-H

volumefor liquidsin-line

Product description
Oval gear positive displacement flow meter for accurate measurement of low to high viscosity liquids under high pressure. Suitable for clean liquids where media conductivity and viscosity variations have minimal impact on measurement. Compact design allows installation in confined spaces.

Measuring range
0.5 - 36 l/h ... 1-40 l/min liquid

Viscosity range
0 - 1000 cP

Connection
G ⅛ ... G ½, ⅛" NPT ... ½" NPT (female)

Material
stainless steel

Maximum pressure (p_max)
400 bar

Maximum temperature (t_max)
120°C

Accuracy
±0.2 ... 1 % of reading

Outputs / Options

• Pulse output
• Analogue output
• Contacts
• Digital / pointer indicator
• Batcher

Principle of Operation
Oval wheel flowmeters are positive displacement meters that measure a fixed volume per rotation using two intermeshing oval rotors in a precision chamber. Rotational movement is detected by embedded magnets, providing a high-resolution pulse signal that can be processed by remote displays, PLCs or integral accessories. This technology delivers precise volumetric measurement regardless of liquid conductivity and requires no flow conditioning, simplifying installation in tight or constrained piping runs.

Technical specifications

• Model: DON-H
• Measuring range: 0.5 - 36 l/h ... 1-40 l/min
• Viscosity range: 0 - 1000 cP
• Connections: G ⅛ ... G ½; ⅛" NPT ... ½" NPT (female)
• Material: stainless steel
• Maximum pressure: 400 bar
• Maximum temperature: 120°C
• Accuracy: ±0.2 ... 1 % of reading
• Available outputs/options: pulse output, analogue output, contacts, digital/pointer indicator, batcher
