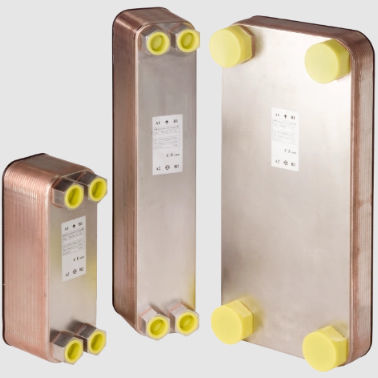

Plate heat exchanger PHE series

liquid/liquidstainless steelcopper

Plate heat exchanger with soldered stainless steel plates The PHE oil-water cooler is a soldered plate heat exchanger made up of two end plates, specifically corrugated flow plates and four connections. The stamped plates of the plate heat exchanger are made of stainless steel and soldered with copper, they generate high power density in tight spaces. Vacuum brazing of the contact points produces a permanently sealed, compact and pressure-resistant heat exchanger that cannot be opened for inspections. Compared to a bundle of pipes heat exchanger, the plate heat exchanger only requires approx. 25 - 30 % of mounting space with less weight. Features Operating temperature: -10 °C - +200 °C maximum permissible operating pressure: PHE 100: 10 bars / PHE 200 - 500: 30 bars Cooling capacities up to 150 kW achievable Volume flow of oil: 60 - 180 l/min Volume flow of water: 30 - 120 l/min
